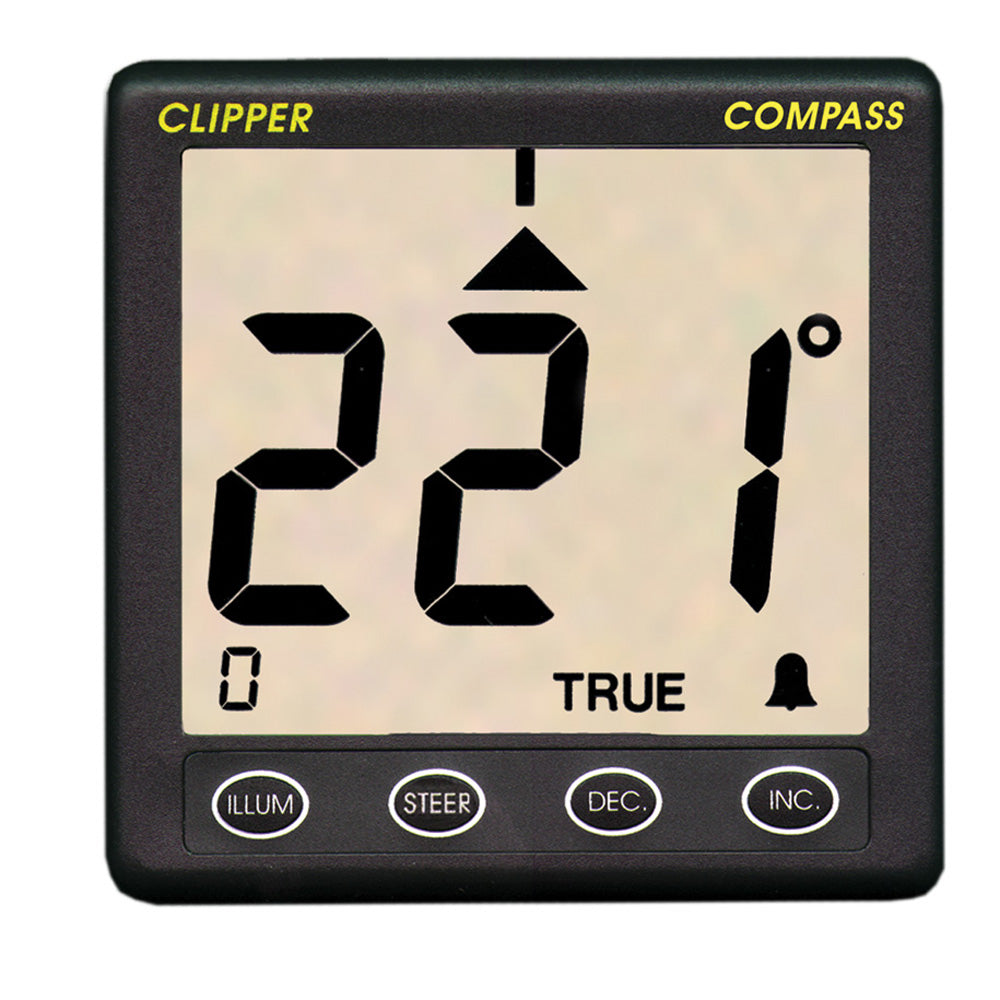

Clipper Cl-C Remote Fluxgate Sensor - Compass System

The Clipper Compass is a fully electronic compass with a remote fluxgate sensor. It provides accurate and reliable heading information, displayed on a large clear screen with adjustable illumination. Whether you need True or magnetic heading, this compass system has got you covered. The sensor is gimballed, allowing for plus/minus 45 degrees of pitch and roll, and is strategically positioned to minimize the impact of stray magnetic fields. An electronic auto calibration feature ensures precise readings by canceling out small errors.

The Clipper Cl-C Remote Fluxgate Sensor - Compass System also offers a unique Steer to Course Function. When engaged, a series of chevrons accumulates on the display, indicating the magnitude and direction of any steering error. To stay on course, simply turn the wheel in the direction of the chevrons until they disappear. The sensitivity of the steering function can be customized according to your preference. Additionally, an off-course alarm provides an essential safety feature when you're not at the helm. If the heading deviates by more than a preset amount, the alarm will sound, alerting you to take corrective action.

Product Features:

• Fully electronic compass with remote fluxgate sensor
• Large clear display with 7 levels of illumination
• Provides True or magnetic heading
• Gimballed sensor for plus/minus 45 degrees of pitch and roll
• Minimizes impact of stray magnetic fields
• Electronic auto calibration for precise readings
• Steer to Course Function for easy course correction
• Customizable steering sensitivity
• Off-course alarm for enhanced safety

Technical Specifications:

• Supply voltage nominal: 12v DC
• Consumption: 120mA+ (25mA for display illumination max)
• Fluxgate accuracy: +/- 1 degree
• Adjustable Damping
• 1 Degree display resolution
• Display case size: 110 x 110 mm
• Depth behind panel: 30mm
• Fluxgate dimensions: 175mm diameter x 95mm
• Sensor supplied with 5 meters of cable
• Face Cover included
• Extension cables available

Learn More

• Compass on Wikipedia
• Fluxgate compass on Wikipedia

Specifications

Product: Clipper Cl-C Compass System Remote Fluxgate Sensor

Brand: Clipper

Model: CL-C
