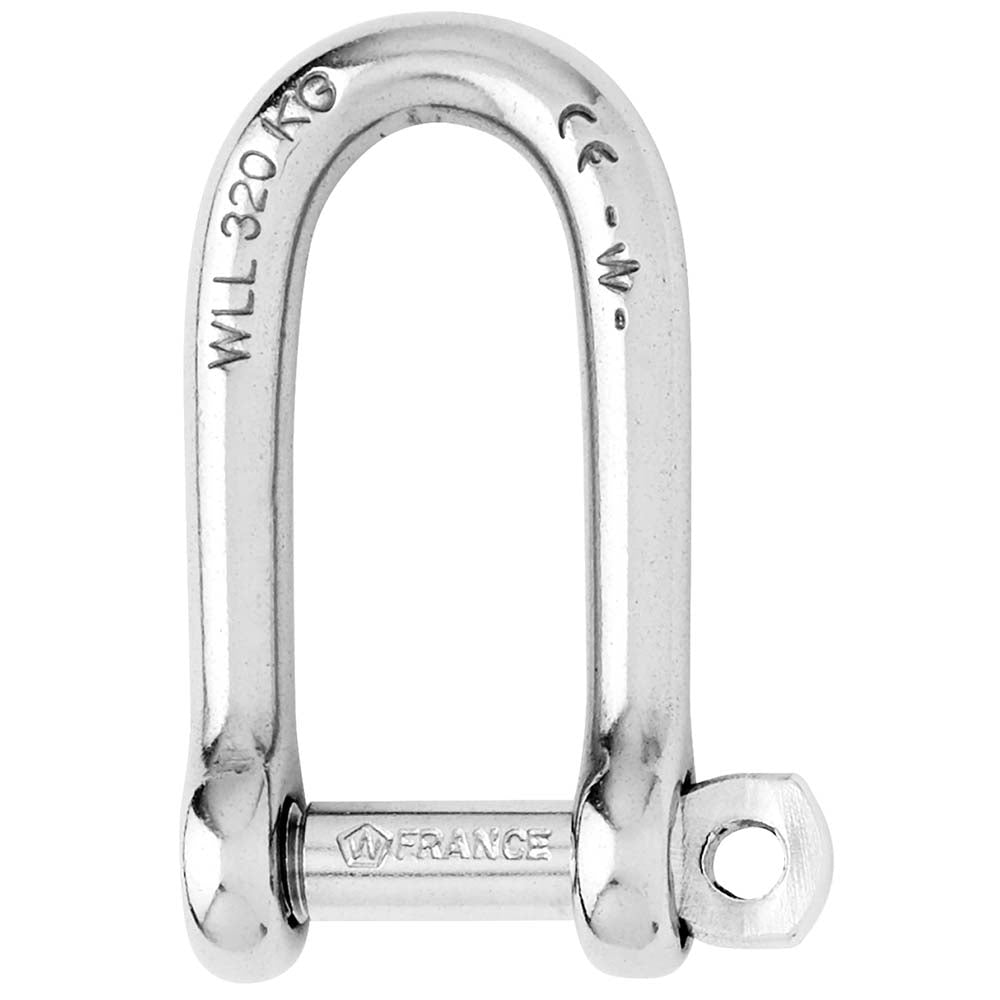

Wichard Marine 8mm 5/16" Self-Locking Long D Shackle - 01214

The Wichard Marine 8mm 5/16" Self-Locking Long D Shackle - 01214 is a high-quality shackle designed for standard and attachment applications. This self-locking long shackle is forged in grade 316L stainless steel, ensuring exceptional durability and reliability in marine environments. With its unique self-locking mechanism, the pin is securely locked into one of the indentations, eliminating any risks of loosening due to vibrations.

Featuring outstanding working and breaking loads, this Wichard Marine shackle is suitable for various industrial applications. It is designed to withstand heavy loads and provide reliable performance in demanding conditions. The shackle is CE marked and includes a batch number for traceability.

Product Features:

• Self-locking long shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications
• CE Marking and batch number

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head…

Specifications:

• Materials: 316 stainless steel grade
• Working load (lb): 2200
• WLL (lb): 1190
• Breaking load (lb): 5950
• Weight (lb): 0.146

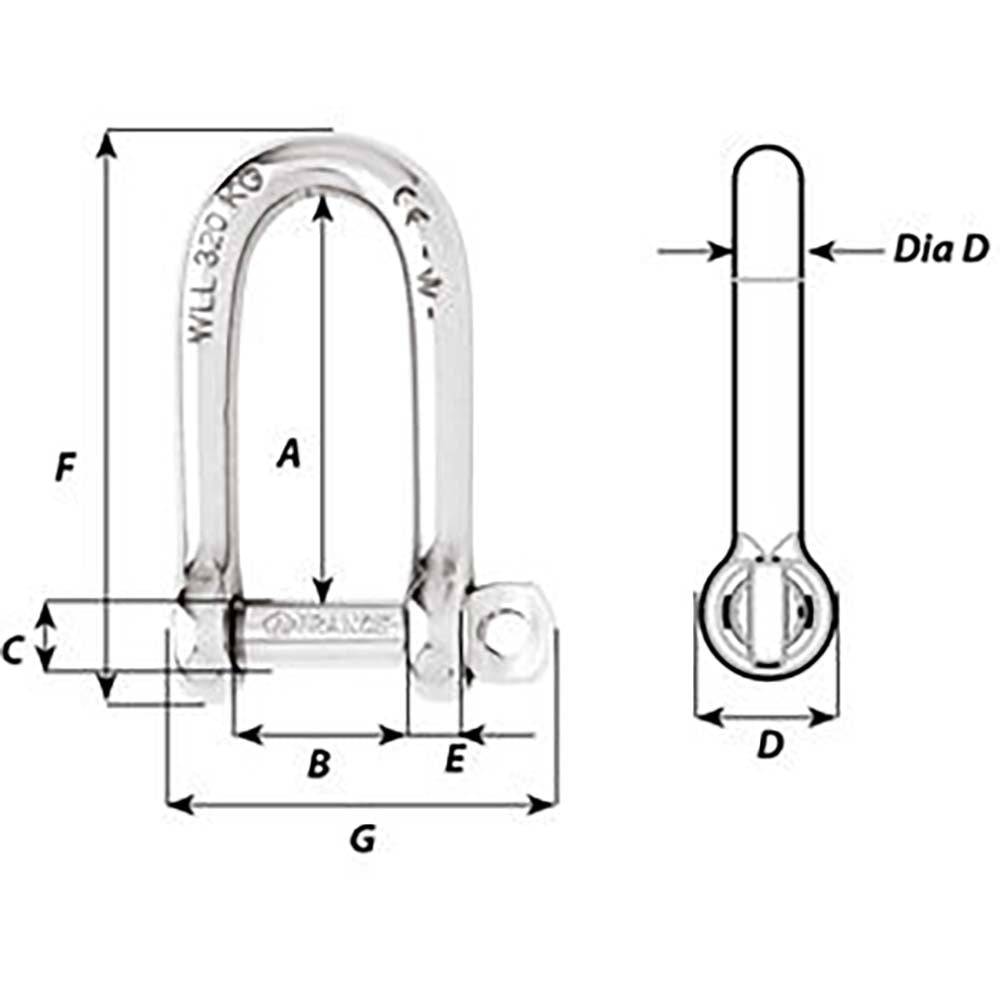

Dimensions (see 2nd image):

• A (inch): 1-49/64"
• B (inch): 5/8"
• C (inch): 5/16"
• D (inch): 5/8"
• D diameter (inch): 5/16"
• E (inch): 9/32"
• F (inch): 2-33/64"
• G (inch): 1-39/64"

Learn More:

• Shackle on Wikipedia

Specifications

Product: Wichard Marine 01214 Self-Locking Long D Shackle Diameter 8Mm 5/16""

Brand: Wichard Marine

Model: 01214

Additional Shipping Information:

Shipping Weight: 0.15 lb

Shipping Height: 2.00 in

Shipping Width: 2.00 in

Shipping Length: 6.00 in
