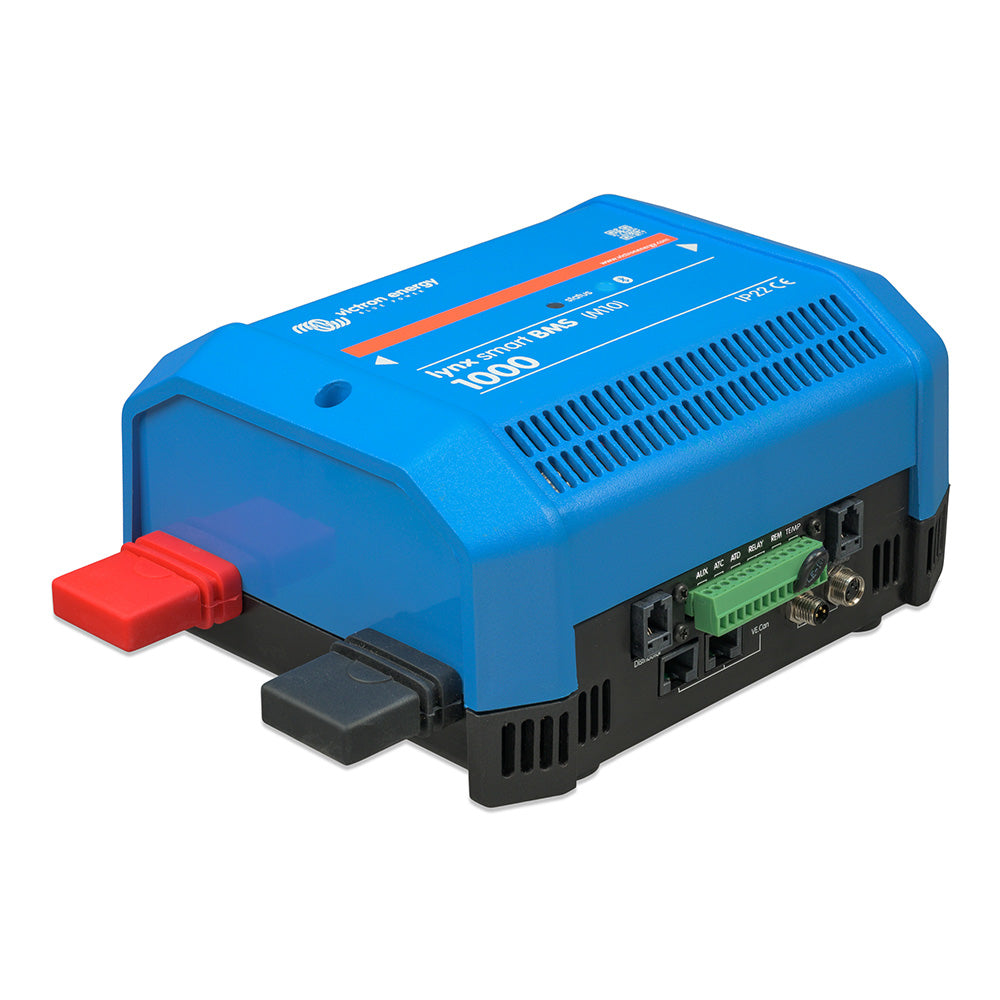

Victron Lyn034170210 Lithium Smart BMS 1000 Battery Management System

The Victron Lyn034170210 Lithium Smart BMS 1000 Battery Management System is a dedicated Battery Management System (BMS) designed for Victron Lithium Battery Smart batteries. These lithium iron phosphate (LiFePO4) batteries are available in 12.8 V or 25.6 V in various capacities, allowing for series, parallel, and series/parallel connections to build battery banks for system voltages of 12V, 24 V, or 48 V. With a maximum of 20 batteries in one system, the Victron Lyn034170210 BMS can provide a maximum energy storage of 84 kWh in a 12 V system and up to 102 kWh in a 24 V or 48 V system.

The Lynx Smart BMS 1000 features a built-in 1000 A contactor, a pre-charge circuit, monitoring and control capabilities via Bluetooth using the VictronConnect App or a GX device, DVCC closed loop control, ATC/ATD contacts, a programmable relay, AUX terminal, VE.Can and NMEA 2000 data communication, and Lynx Distributor fuse monitoring. The built-in 1000 A contactor acts as a secondary safety system to protect the battery, while the pre-charge circuit prevents high inrush currents when connecting a capacitive load. The BMS can be monitored and controlled remotely, and it integrates seamlessly into the Lynx Distributor system.

With its programmable relay, AUX terminal, and VE.Can and NMEA 2000 data communication capabilities, the Victron Lyn034170210 Lithium Smart BMS 1000 Battery Management System offers advanced features for efficient and reliable battery management.

Features:

• Built-in 1000 A Contactor
• Pre-charge Circuit
• Monitoring and Control via Bluetooth
• DVCC Closed Loop Control
• ATC/ATD Contacts
• Programmable Relay
• AUX Terminal
• VE.Can and NMEA 2000 Data Communication
• Lynx Distributor Fuse Monitoring

Specifications:

• Maximum System Voltage: 12V, 24V, 48V
• Maximum Energy Storage: 84 kWh (12V), 102 kWh (24V/48V)
• Maximum Number of Batteries in One System: 20
• Contact Rating: 1000 A
• AUX Terminal Power Supply: 1.1 A at system voltage
• Communication: Bluetooth, VE.Can, NMEA 2000

Learn More

• Lithium Iron Phosphate Battery
• Battery Management System

Specifications

Product: Victron Lyn034170210 Lithium Smart BMS 1000 Battery Management System

Brand: Victron Energy

Model: LYN034170210

Additional Shipping Information:

Shipping Weight: 6.70 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 12.00 in
