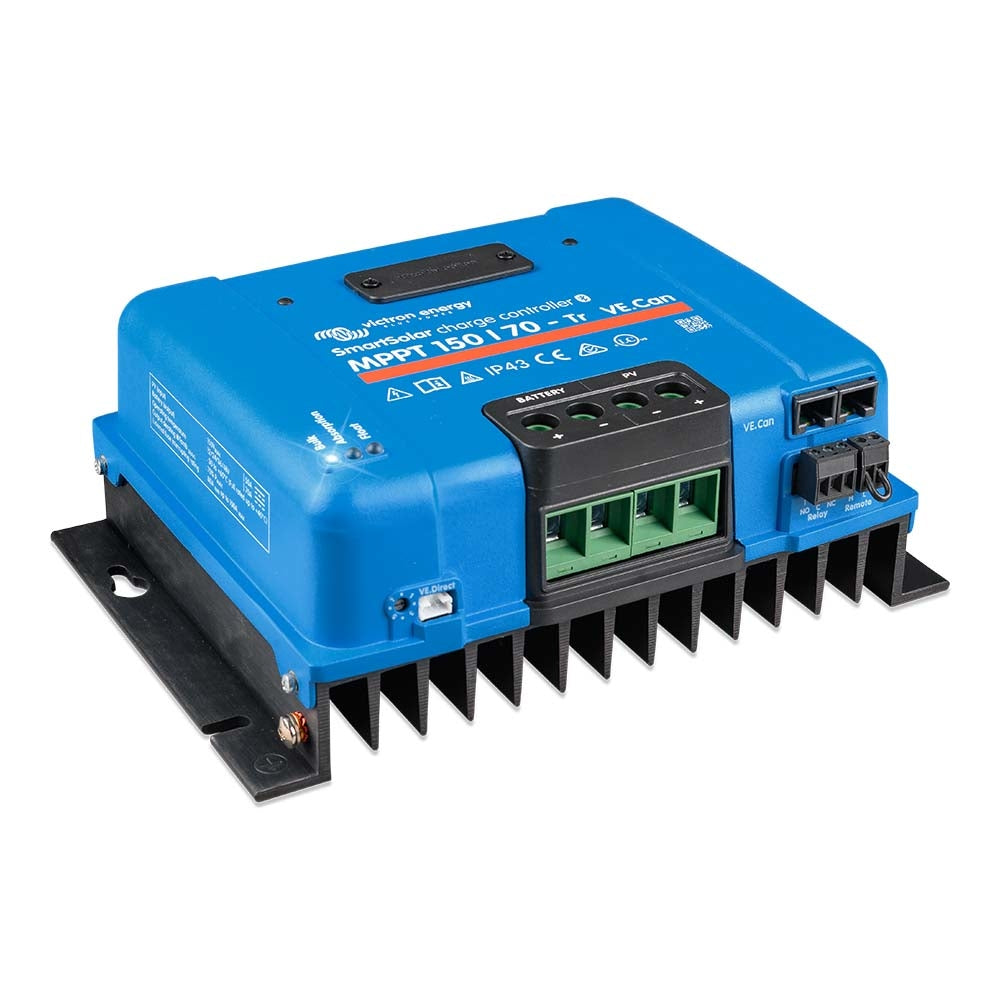

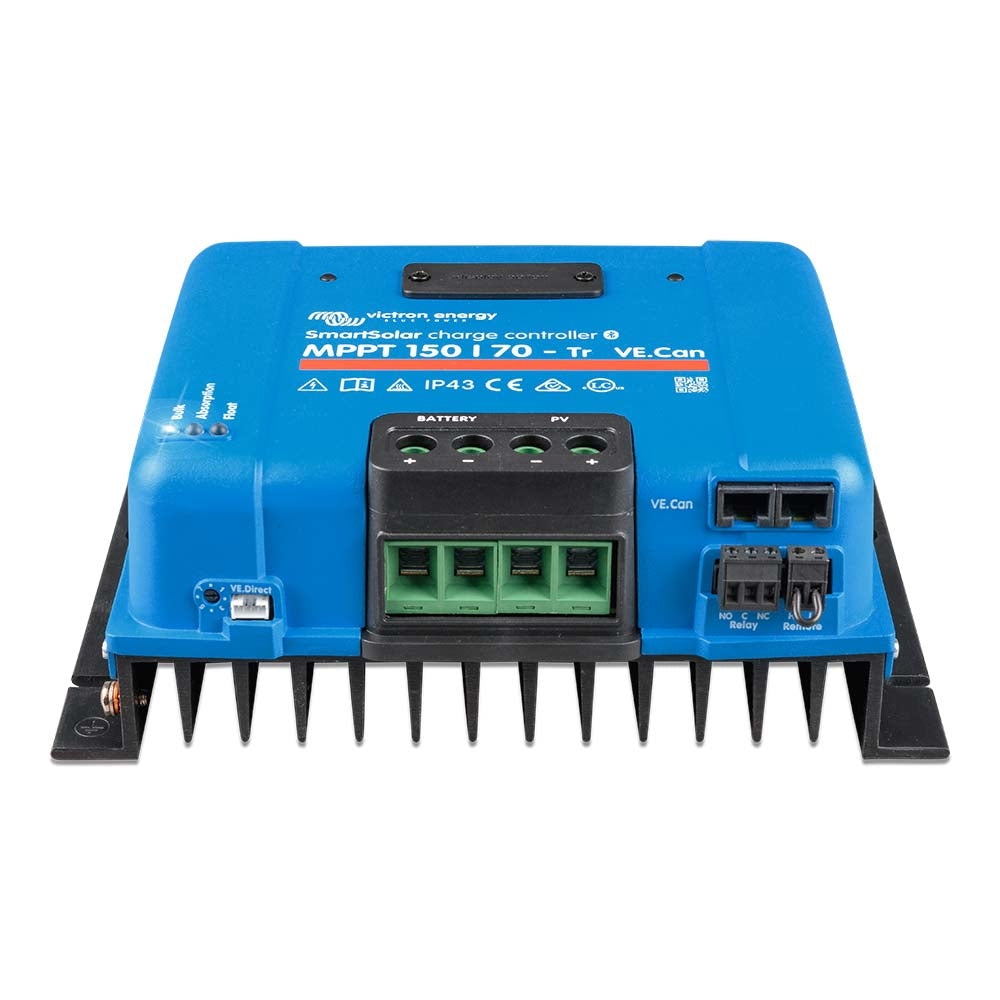

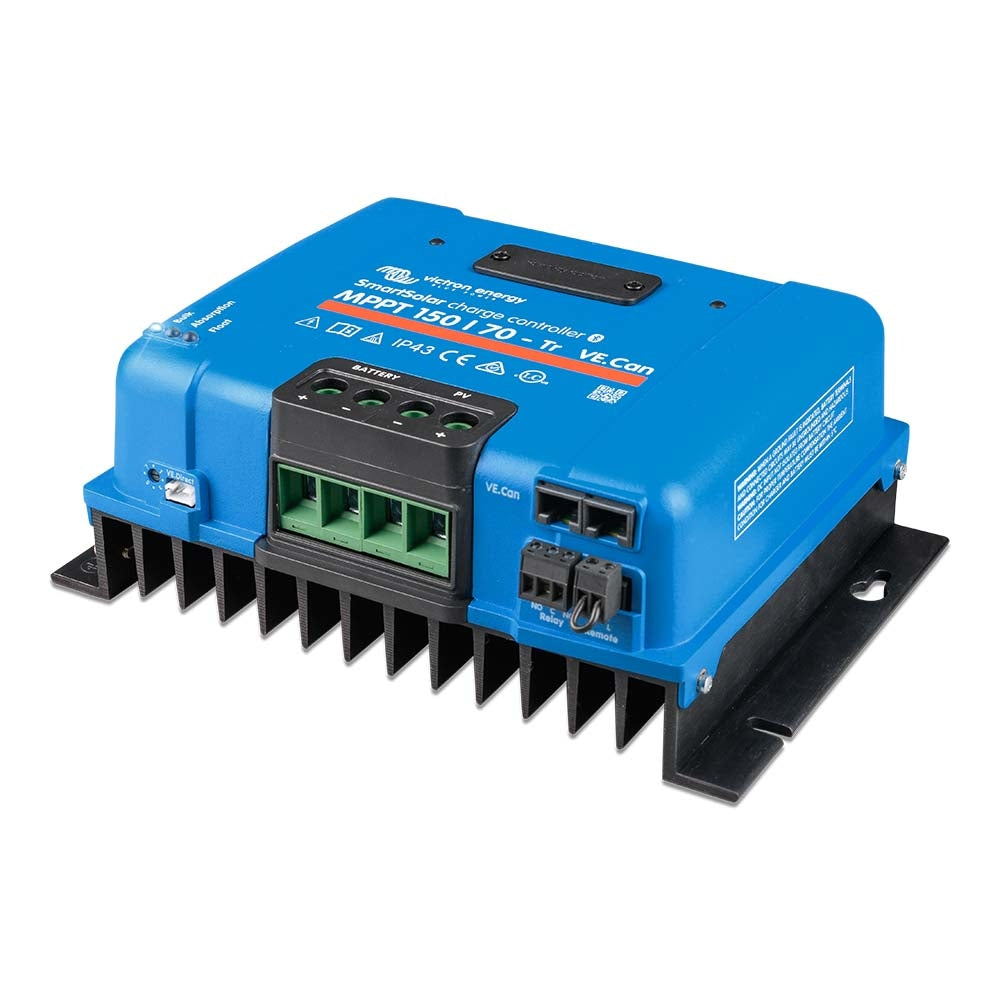

Victron Energy SmartSolar MPPT 150/70-TR VE.Can Solar Charge Controller

The Victron Energy SmartSolar MPPT 150/70-TR VE.Can Solar Charge Controller is a high-performance solar charge controller designed to efficiently convert energy from a solar array into optimal battery charging power. It features the latest and fastest MPPT (Maximum Power Point Tracking) technology, ensuring maximum energy harvest from your solar panels.

This charge controller is capable of recharging severely depleted batteries and can operate with a battery voltage as low as 0 Volts, as long as the cells are not permanently sulfated or damaged. It supports a wide range of battery voltages, including 12V, 24V, and 48V, and can deliver a charging current ranging from 70 to 100A, depending on the model.

The MPPT VE.Can SmartSolar charger offers fully programmable charge settings, allowing you to customize the charging parameters for different battery chemistries such as lead-acid and lithium. With the VictronConnect App, you can remotely control and configure the charger over Bluetooth, providing easy device set-up, management, and real-time monitoring of battery voltage, current, PV voltage, current, and historical data.

The VE.Can SmartSolar charger is equipped with CAN bus ports, enabling communication with additional VE.Can SmartSolar chargers. By daisy-chaining multiple units using a single RJ45 cable, the charge stages of all connected chargers can be synchronized. The chargers can also send their data to a GX monitoring device via a single cable.

For remote monitoring and control, the Victron Remote Management Portal (VRM) can be accessed if the GX device is connected to the internet. This provides full access to the power of your solar charger(s) and allows for advanced management and analysis.

The VE.Can SmartSolar charger also features a VE.Direct port for single-unit monitoring or streetlight control. Additionally, it can be externally controlled by a third-party device like a lithium battery using the remote on/off connector. An optional plug-in LCD display/control is available, providing live data, set-up, and management directly from the device.

Key Features:

• Latest MPPT technology for efficient energy conversion
• Supports battery voltages of 12V, 24V, and 48V
• Charging current ranging from 70 to 100A
• Fully programmable charge settings for different battery chemistries
• Remote control and configuration via Bluetooth and VictronConnect App
• CAN bus ports for daisy-chaining multiple chargers and synchronization
• Remote monitoring and control through Victron Remote Management Portal (VRM)
• VE.Direct port for monitoring or streetlight control
• External control capability via remote on/off connector
• Optional plug-in LCD display/control for easy device management

Specifications:

• Model: MPPT 150/70-TR VE.Can
• Maximum PV Voltage (Voc): 150V or 250V
• Battery Voltage: 12V, 24V, 48V
• Charging Current: 70A to 100A
• Communication: Bluetooth, CAN bus
• Monitoring: VE.Direct, GX monitoring device

Learn More:

For more detailed information about the Victron Energy SmartSolar MPPT 150/70-TR VE.Can Solar Charge Controller, you can visit the following Wikipedia page:

Solar Charge Controller

Specifications

Product: Victron Energy Scc115070411 Smartsolar Mppt 150/70-Tr Ve.Can Tr Solar Charge

Brand: Victron Energy

Model: SCC115070411

Additional Shipping Information:

Shipping Weight: 7.95 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 11.00 in
