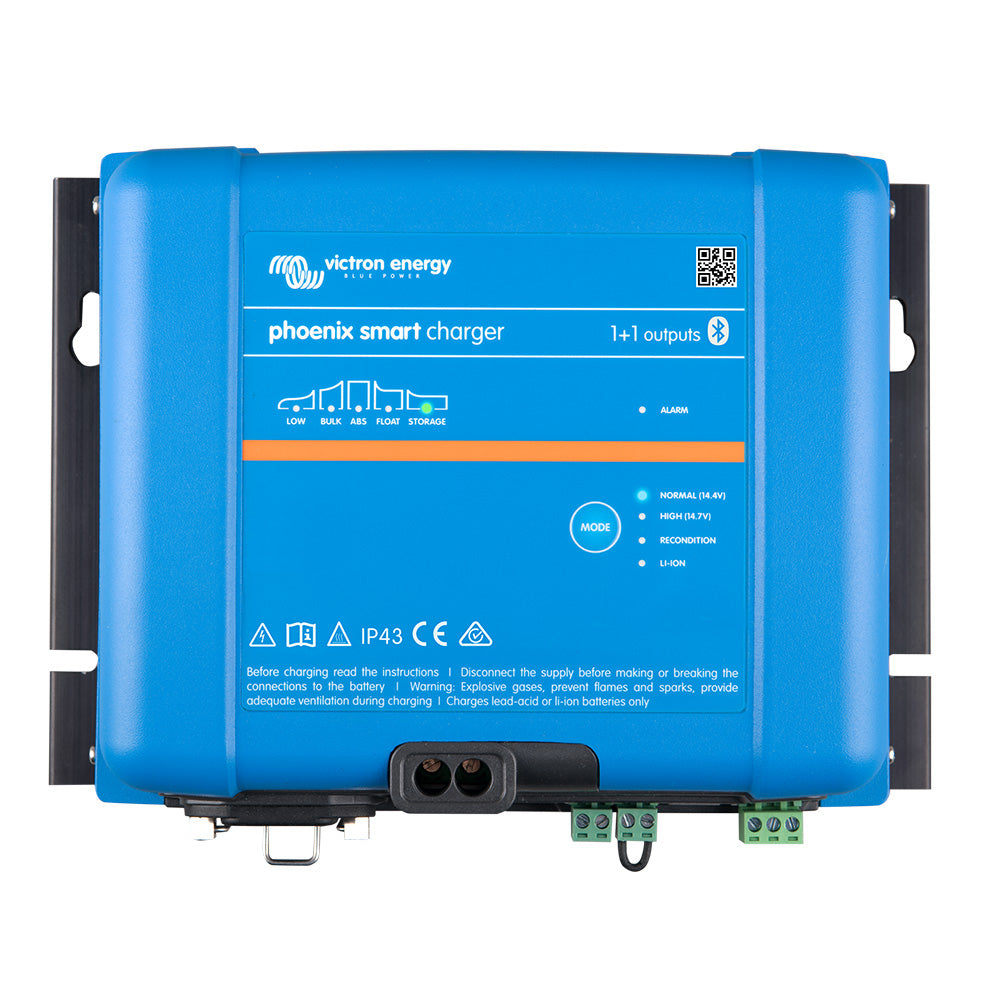

Victron Energy Psc242551095 Phoenix Smart Ip43 Charger 24/25 1+1 120-240Vac

The Victron Energy Psc242551095 Phoenix Smart Ip43 Charger is a versatile and powerful charger designed with boat owners in mind. It features an adaptive 5-step charging process that can provide either 30A or 50A of charge to each of the three battery banks. The Phoenix 1+1 model provides 3A to the starter battery and the remaining charge to the 'house' bank. The 24V models are available with a 16A/25A charge.

This charger is Bluetooth enabled, allowing you to easily monitor the charger and set alarms straight from your phone. It also offers a range of features to ensure efficient and safe charging of your batteries.

Features:

• Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronize Phoenix Smart IP43 Chargers. Learn More
• Phoenix Smart (1+1): Two outputs to charge 2 battery banks. The second output, limited to approximately 4A and with a slightly lower output voltage, is intended to top up a starter battery.
• Phoenix Smart (3): Three full current outputs to charge 3 battery banks. Each output can supply the full rated output current, but the total of the 3 outputs combined can never exceed the current rating of the charger.
• Automatic voltage compensation: The charger compensates for voltage drop over the DC cabling by slightly increasing the output voltage when the DC current increases.
• Adaptive 6-stage charge algorithm: Bulk - Absorption - Recondition - Float - Storage - Refresh. The charger features an adaptive battery management system that can be preset to suit different types of batteries.
• The right amount of charge: Variable absorption time. The absorption time is adjusted based on the depth of discharge to prevent overcharging or undercharging of the battery.
• Preventing damage due to excessive gassing: The BatterySafe mode. The charger automatically limits the rate of voltage increase once the gassing voltage has been reached to prevent damage due to excessive gassing.
• Less maintenance and aging when the battery is not in use: The Storage Mode. The charger reduces the float voltage to minimize gassing and corrosion of the positive plates when the battery is not in use.
• Also charges Li-ion (LiFePO4) batteries. Charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-ion BMS to the remote on-off port. Alternatively, full control of voltage and current can be achieved with Bluetooth.
• Fully programmable charge algorithm: The charge algorithm can be programmed with the help of Bluetooth or the VE.Direct interface.
• Optional external battery voltage and temperature sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more Phoenix Smart IP43 Chargers.
• Remote on-off: The charger can be remotely controlled using the remote on/off terminals.
• VE.Direct interface: For a wired data connection to a Color Control panel, PC, or other devices.

Specifications:

• Model: Psc242551095
• Charger Type: Smart Charger
• Input Voltage: 120-240VAC
• Output Voltage: 24V
• Charge Current: 25A
• Number of Outputs: 2 (1+1)
• Output Current (Starter Battery): 3A
• Output Current (House Bank): 22A
• Bluetooth Enabled: Yes

Learn More:

For more information about the Victron Energy Psc242551095 Phoenix Smart Ip43 Charger, please visit the Victron Energy Wikipedia page.

Specifications

Product: Victron Energy Psc242551095 Phoenix Smart Ip43 Charger 24/25 1+1 120-240Vac

Brand: Victron Energy

Model: PSC242551095

Additional Shipping Information:

Shipping Weight: 7.00 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 11.00 in
