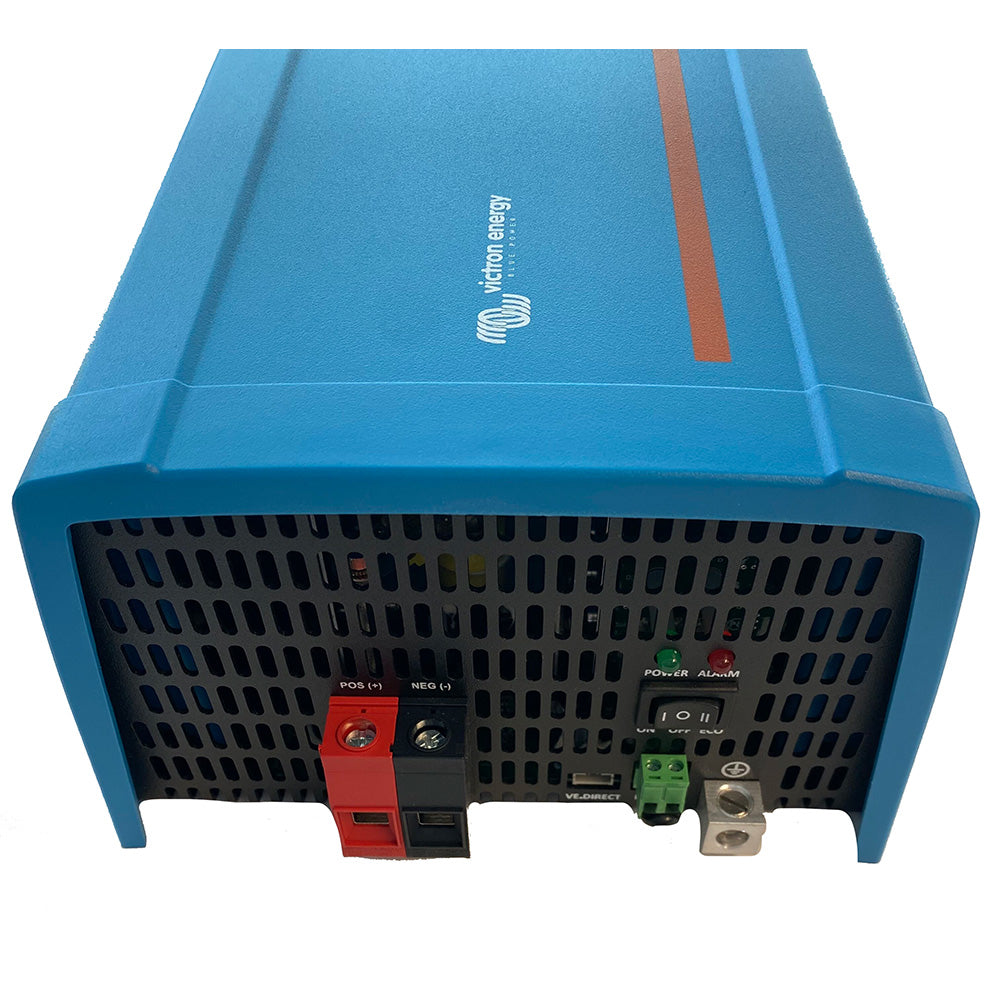

Victron Energy PIN482122500 Phoenix Inverter 48VDC 1200VA 120VAC Ve.Direct NEMA

The Victron Energy PIN482122500 Phoenix Inverter is a high-quality inverter that allows you to power domestic equipment requiring 230V/120V AC using 'leisure' or 'automotive' batteries rated at 48VDC. With its proven reliability and advanced features, this inverter is perfect for a wide range of applications.

Product Features:

• Cont. Output Power at 25&degC: 1200VA
• Cont. Output Power at 25&degC/40&degC: 1000 / 850W
• Peak Power: 2200W
• Output AC voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0.1%
• Input Voltage Range: 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0V
• DC Low Shut Down (adjustable): 9.3 / 18.6 / 37.2V
• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see here
• DC Low Restart and Alarm (adjustable): 10.9 / 21.8 / 43.6V
• Battery Charged Detect (adjustable): 14.0 / 28.0 / 56.0V
• Maximum Efficiency: 91 / 91 / 92%
• Zero Load Power: 7 / 8 / 10W
• Default Zero-Load Power in ECO Mode (default retry interval: 2.5s, adjustable): 1 / 1.5 / 3.0W
• ECO Mode Stop and Start Power Setting: Adjustable
• Protection: a - f
• Operating Temperature Range: -40 to +65&degC (fan-assisted cooling) Derate 1.25% per &degC above 40&degC
• Humidity (non-condensing): Max 95%

Product Specifications:

• Material & Color: Steel chassis and plastic cover (blue Ral 5012)
• Battery-Connection: Screw terminals
• Maximum Cable Cross-Section: 35 / 25 / 25mm2 / AWG2 / 4 / 4
• Standard AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) / 120V: Nema 5-15R, GFCI
• Protection category: IP 21
• Weight: 7.4kg / 16.3lbs
• Dimensions (h x w x d): 117 x 232 x 327mm / (4.6 x 9.1 x ...

Learn More:

To learn more about Victron Energy PIN482122500 Phoenix Inverter, you can visit the Wikipedia page about inverters.

Specifications

Product: Victron Energy Pin482122500 Phoenix Inverter 48Vdc 1200Va 120Vac Ve.Direct Nema

Brand: Victron Energy

Model: PIN482122500

Additional Shipping Information:

Shipping Weight: 18.85 lb

Shipping Height: 8.00 in

Shipping Width: 12.00 in

Shipping Length: 16.00 in
