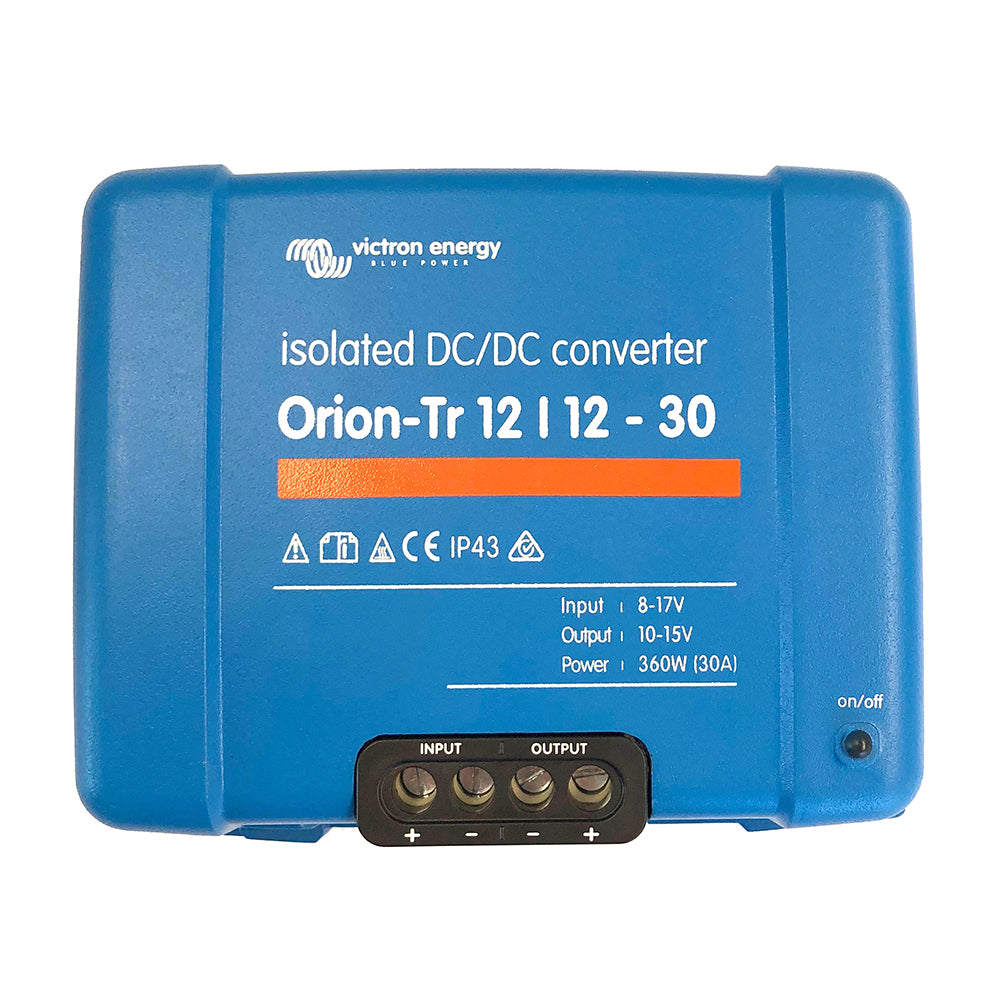

Victron Energy Orion-Tr 12V to 30A Isolated DC-DC Converter (Ori121240110)

The Victron Energy Orion-Tr 12V to 30A Isolated DC-DC Converter (Ori121240110) is a high-quality and reliable converter designed to convert 12VDC input voltage to 12VDC output voltage with a maximum output current of 30 amps. It is an ideal choice for various applications where isolated DC-DC conversion is required.

Features:

• Remote on-off: The remote on-off feature eliminates the need for a high current switch in the input wiring. It can be operated using a low power switch or the engine run/stop switch.
• Adjustable output voltage: This converter can also be used as a battery charger, making it suitable for charging a 12 Volt starter or accessory battery in a 24V system.
• Short circuit proof and parallel connection: All models of this converter are short circuit proof and can be paralleled to increase the output current. You can connect an unlimited number of units in parallel.
• High temperature protected: The output current will reduce at high ambient temperatures, ensuring the safety and longevity of the converter.
• IP43 protection: When installed with the screw terminals oriented downwards, this converter provides IP43 protection against solid objects greater than 1mm and water spray from up to 60 degrees from vertical.
• Screw terminals: The installation of this converter is hassle-free as it features screw terminals that do not require any special tools.
• Input fuse: This model is equipped with an input fuse (not replaceable) for added safety. Please note that the input fuse is only available on 12V and 24V input models.

Specifications:

• Input voltage range: 10.5V - 15V
• Output voltage: 12V
• Output current: 30A
• Efficiency: >95%
• Operating temperature: -40&degC to +55&degC
• Dimensions: 130 x 186 x 70 mm (W x H x D)
• Weight: 1.5 kg

Learn More:

For more detailed information about DC-DC converters, you can visit the DC-to-DC converter page on Wikipedia.

Specifications

Product: Victron Energy Ori121240110 Orion-Tr Dc-Dc Converter 12 Vdc To 30Amp Isolated

Brand: Victron Energy

Model: ORI121240110

Additional Shipping Information:

Shipping Weight: 4.20 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
