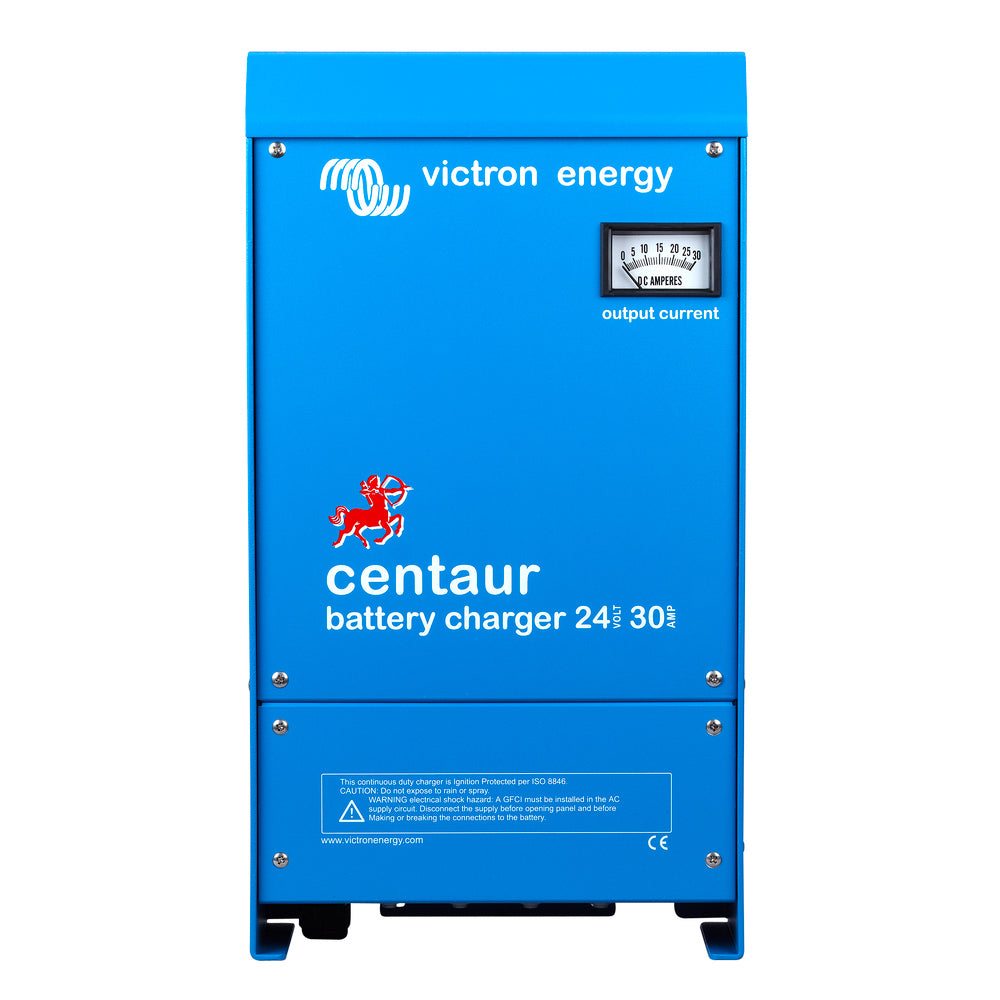

Victron Energy Centaur Charger 24V 30A 3-Bank 120-240VAC - CCH024030000

The Victron Energy Centaur Charger is a high-quality and reliable charging solution designed to meet the demanding requirements of adverse environments. With a robust construction, this charger is built to withstand heat, humidity, and salt air, making it ideal for various applications. The charger features aluminium epoxy powder coated cases with a drip shield and stainless steel fixings, ensuring durability and corrosion resistance. The circuit boards are protected with an acrylic coating, further enhancing the charger's resistance to corrosion.

The Centaur Charger operates with a universal input voltage range of 90-265V AC, making it suitable for both AC and DC supply operation. It can effortlessly handle input voltages ranging from 90 to 265 Volts, regardless of whether it is 50 Hz or 60 Hz. Additionally, this charger accepts a wide DC supply range of 90-400V.

Equipped with three outputs, each capable of supplying the full rated current, the Centaur Charger allows for simultaneous charging of three battery banks. This feature provides convenience and flexibility for multi-battery setups. The charger utilizes a three-stage charging process, including bulk rate charging, timed period charging, and float rate charging. Temperature sensors ensure that power components operate within specified limits, with the ability to automatically reduce output current under extreme environmental conditions.

The Centaur Charger also incorporates temperature compensation for precise charging. It charges at bulk rate until the output current has reduced to 70% of the rated Amps, at which point a 4-hour timer begins. After the timed period, the charger switches to float rate. The charger includes an internal temperature sensor that compensates the charge voltage based on temperature variations, ensuring optimal charging performance. A DIP switch is available to select the ideal charge/float voltages for Flooded Lead-acid, Gel, or AGM batteries.

Product Features:

• Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings for durability
• Corrosion resistance - Circuit boards protected with acrylic coating
• Wide input voltage range - Universal 90-265V AC input voltage range, suitable for AC and DC supply
• Three outputs - Simultaneously charge 3 battery banks with isolated outputs
• Full rated current - Each output can supply the full rated current
• Three-stage charging - Bulk rate, timed period, and float rate charging
• Temperature compensation - Internal temperature sensor adjusts charge voltage based on temperature
• DIP switch - Select optimal charge/float voltages for Flooded Lead-acid, Gel, or AGM batteries

Specifications:

• Product: Victron Energy Centaur Charger
• Model: CCH024030000
• Voltage: 24V DC
• Current: 30A
• Banks: 3
• Input Voltage Range: 90-265V AC, 90-400V DC

Learn More:

For more information about Centaur Chargers, please visit the Battery Charger page on Wikipedia.

Specifications

Product: Victron Energy Cch024030000 Centaur Charger 24 Vdc 30Amp 3-Bank 120-240 Vac

Brand: Victron Energy

Model: CCH024030000

Additional Shipping Information:

Shipping Weight: 15.05 lb

Shipping Height: 8.00 in

Shipping Width: 13.00 in

Shipping Length: 21.00 in
