Tripp Lite Master-Power 4Postrailkitwm 4Post RM UPS Installation Kit 1U Shelf

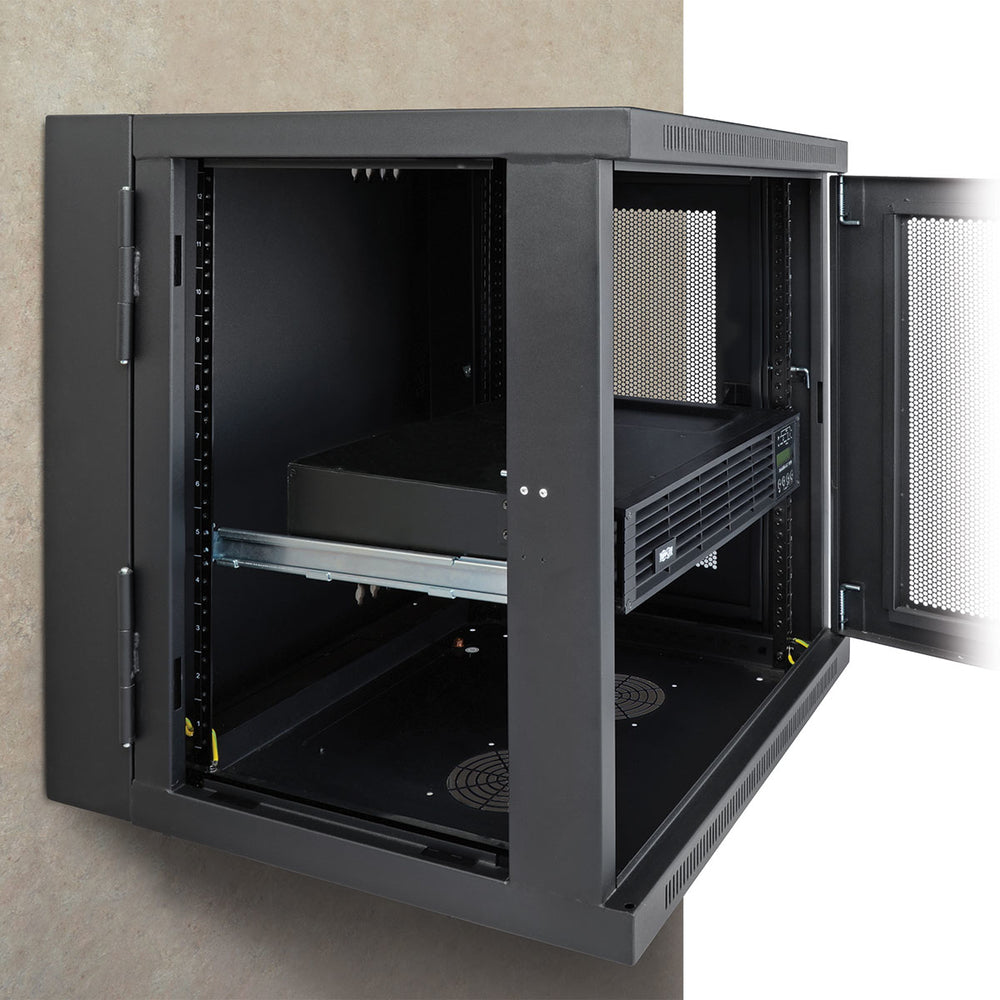

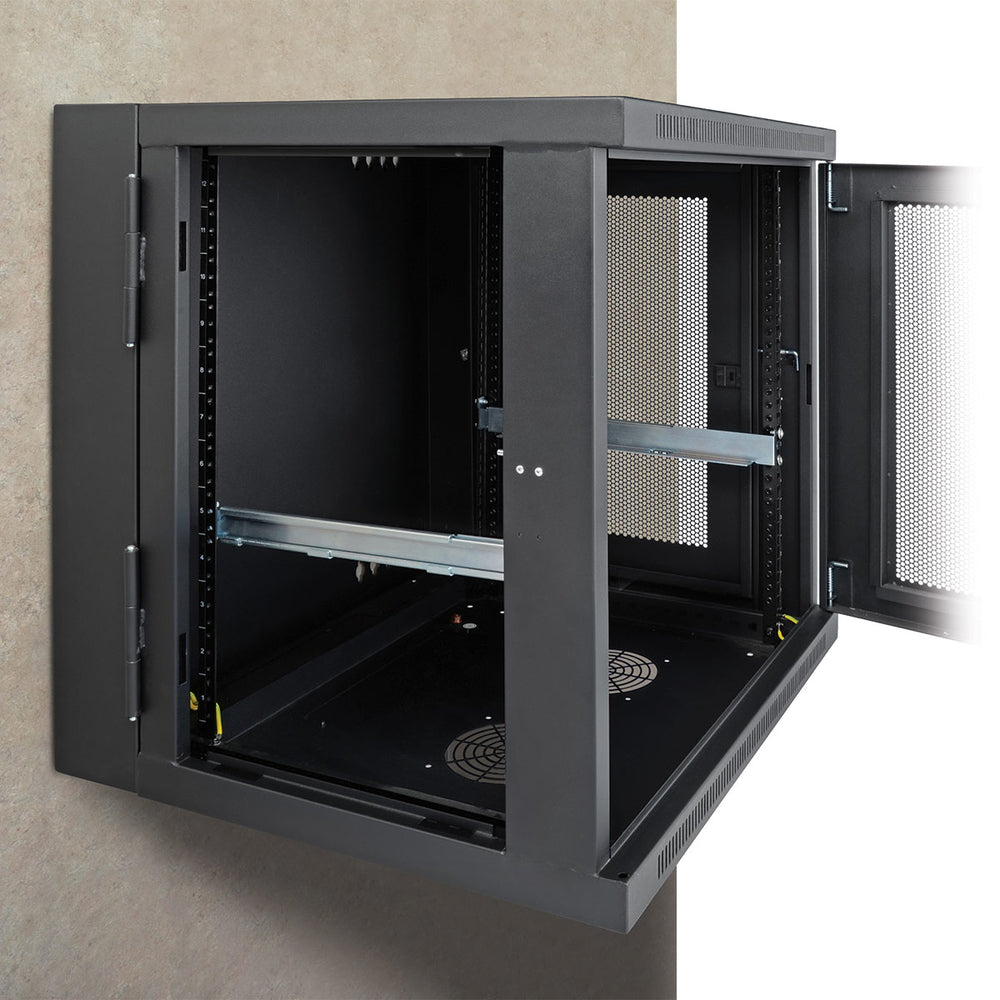

The Tripp Lite Master-Power 4Postrailkitwm 4Post RM UPS Installation Kit 1U Shelf provides extra support for a 1U UPS system, PDU, or other rack-mount component weighing 68 kgs or less. This rack accessory kit includes two adjustable mounting rails that attach to the sides of your EIA-standard 19-inch wall-mount open frame rack or enclosure.

Constructed using cold-rolled steel with a durable black powder-coated finish, this heavy-duty rack rail kit offers front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. The rails can be adjusted to any setting between 14.5 and 23.5 inches, allowing flexibility in installation. Additionally, the design leaves the front and rear mounting holes free to attach equipment, ensuring easy setup and saving time and money.

The Tripp Lite Master-Power 4Postrailkitwm 4Post RM UPS Installation Kit 1U Shelf is compatible with 19-inch wall-mount open frame racks and enclosures. It is a 1U rack rail kit with a maximum load capacity of 68 kgs, making it suitable for various applications. The cold-rolled steel construction with a black powder-coated finish ensures long-lasting durability.

Product Features:

• Type: Mounting kit
• Product color: Silver
• Screws included: Yes
• Width: 37.8 inches
• Depth: 368.3 inches
• Depth (max): 596.9 inches
• Height: 43.7 inches
• Weight: 1180 grams
• Package width: 54.9 inches
• Package depth: 385.1 inches
• Package height: 50 inches
• Package weight: 1360 grams
• Rack capacity: 1U
• Compatible rack width: 19 inches
• Housing material: Steel
• Master (outer) case height: 130 mm
• Master (outer) case width: 270 mm
• Master (outer) case weight: 13970 grams
• Master (outer) case length: 405.1 mm
• Quantity per master (outer) case: 10

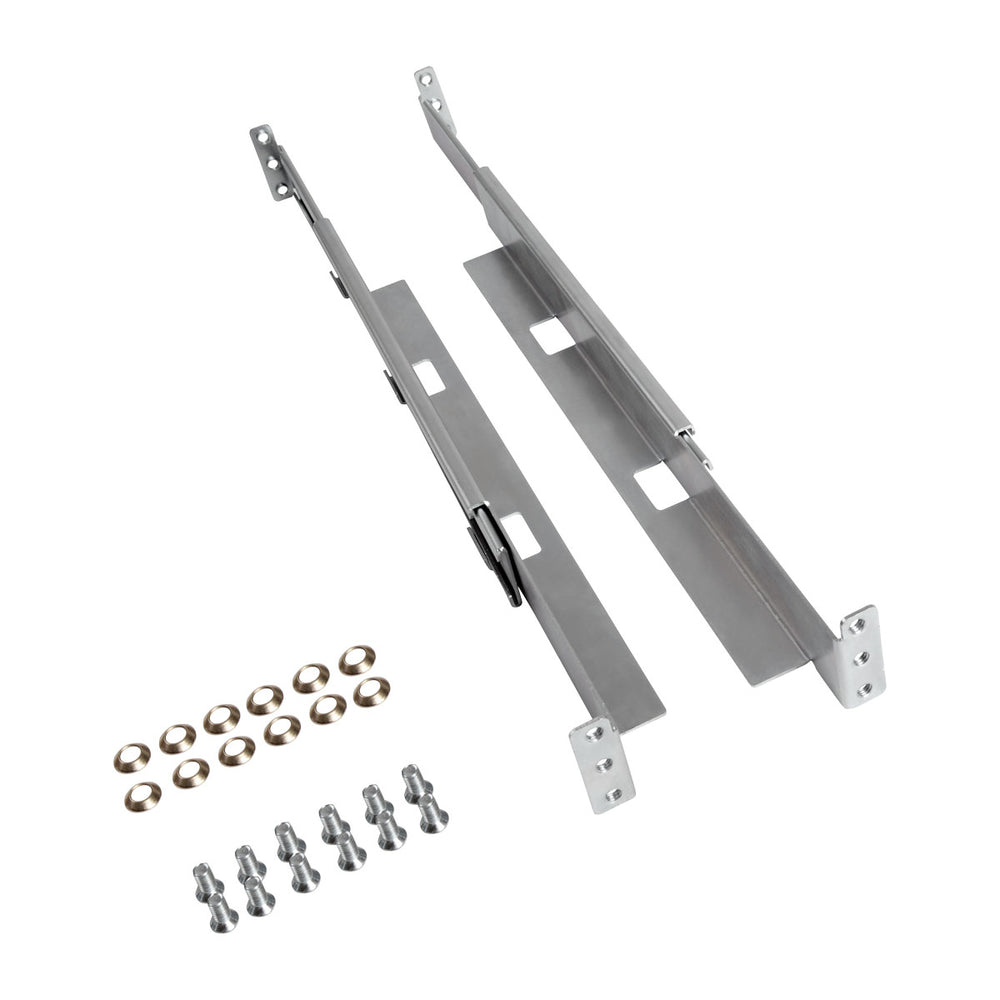

Package Includes:

• Left rail piece, short
• Left rail piece, long
• Right rail piece, short
• Right rail piece, long
• 12 M6 screws
• 12 M6 washers
• Owner's manual

Learn More:

For more information about rack accessories, please visit the Rack Unit Wikipedia page.

Specifications

Product: Tripp Lite Master-Power 4Postrailkitwm 4Post Rm Ups Installation Kit 1U Shelf

Brand: Tripp Lite

Model: 4POSTRAILKITWM

Additional Shipping Information:

Shipping Weight: 2.10 lb

Shipping Height: 2.00 in

Shipping Width: 2.50 in

Shipping Length: 15.50 in
