Simrad 000-13337-001 NAC-2 VRF Core Pack with Precision-9 and N2K Starter Kit

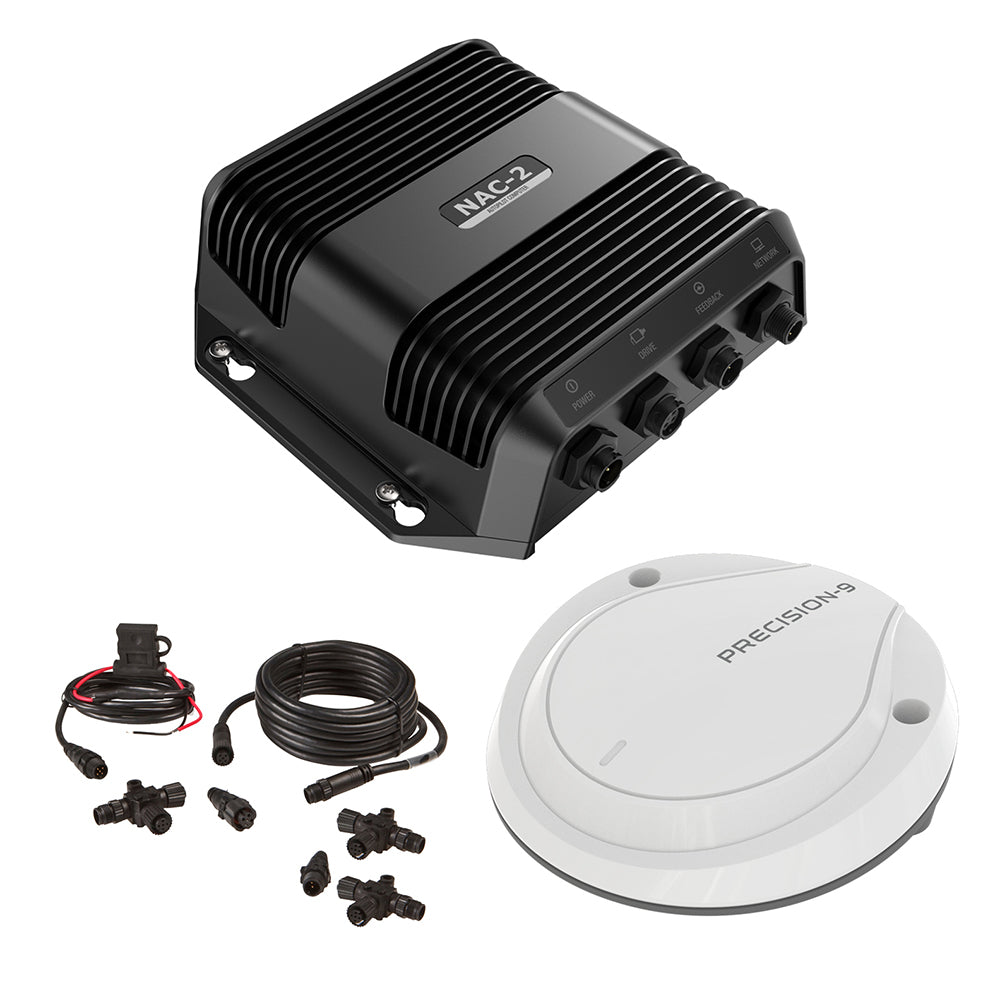

The Simrad 000-13337-001 NAC-2 VRF Core Pack with Precision-9 and N2K Starter Kit is a comprehensive autopilot system designed for boats up to 10 meters (33 feet) in length. This pack includes the NAC-2 autopilot computer, Precision-9 compass, and N2k Starter Kit, providing you with all the necessary components for a reliable and efficient autopilot system.

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000® connection

Specifications:

• NAC-2 Autopilot Computer:
  • Operating temperature: -25°C to +55°C (13°F to 131°F)
  • Protection: Splashproof, IPx5
  • Weight: 0.6 kg (1.3 lbs)
  • Overall Dimensions: Width: 7.1" / 180mm, Height: 2.2" / 57mm
  • Power supply: 9-31.2 V DC
  • Load: 140 mA + drive unit load
  • Performance: Drive: 8 A cont., 16A for 1s
  • Network: 1xMicroC (NMEA2000)
  • Feedback: Variable voltage/resistive 0-5V
  • Drive output: To PUMP-1 or HELM-1
  • Power supply: 9-31.2 V DC
  • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Clutch: 12/24V DC, min 10mA, max 3A
• Precision-9 Compass:
  • Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")
  • Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)
  • Supply and interface: 8-16 V via NMEA 2000
  • Power consumption: 0.4 W
  • NMEA 2000 Load Equivalence No. (LEN): 1
  • NMEA 2000 ports (input/output): 1
  • Calibration: Automatic (User Prompted)
  • Repeatability: ±1.0° (or better)
  • Roll/Pitch range: ±45°
  • Heading accuracy: ±2° after calibration
  • Dynamic performance: with random excitation of ±10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°
  • Environmental protection: IPx7
  • Compass safe distance: 0.5M(1.7')
  • Temperature range operation: -25 to +65°C (-13 to +149°F)
  • Temperature range Storage: -30 to +70°C (-22 to +158°F)

Learn More:

• Autopilot on Wikipedia
• Compass on Wikipedia
• NMEA 2000 on Wikipedia

Specifications

Product: Simrad 000-13337-001 Nac-2 Vrf Core Pack Precision-9 And N2K Starter Kit

Brand: Simrad

Model:

Additional Shipping Information:

Shipping Weight: 7.20 lb

Shipping Height: 10.00 in

Shipping Width: 10.00 in

Shipping Length: 16.00 in
