Navico 000-12607-001 Precision-9 Compass - Marine Navigation Sensor

The Navico Precision-9 Compass is a high-quality marine navigation sensor that provides accurate and reliable heading, rate of turn (ROT), roll, and pitch information. Designed for use with Simrad, B&G, and Lowrance autopilot, radar, and navigation systems, this compact compass is based on solid-state sensor technology, ensuring precise and consistent performance.

Product Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000r
• Heading and ROT calculated using sensor data from 9 axes of rotation and motion
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2&deg after calibration

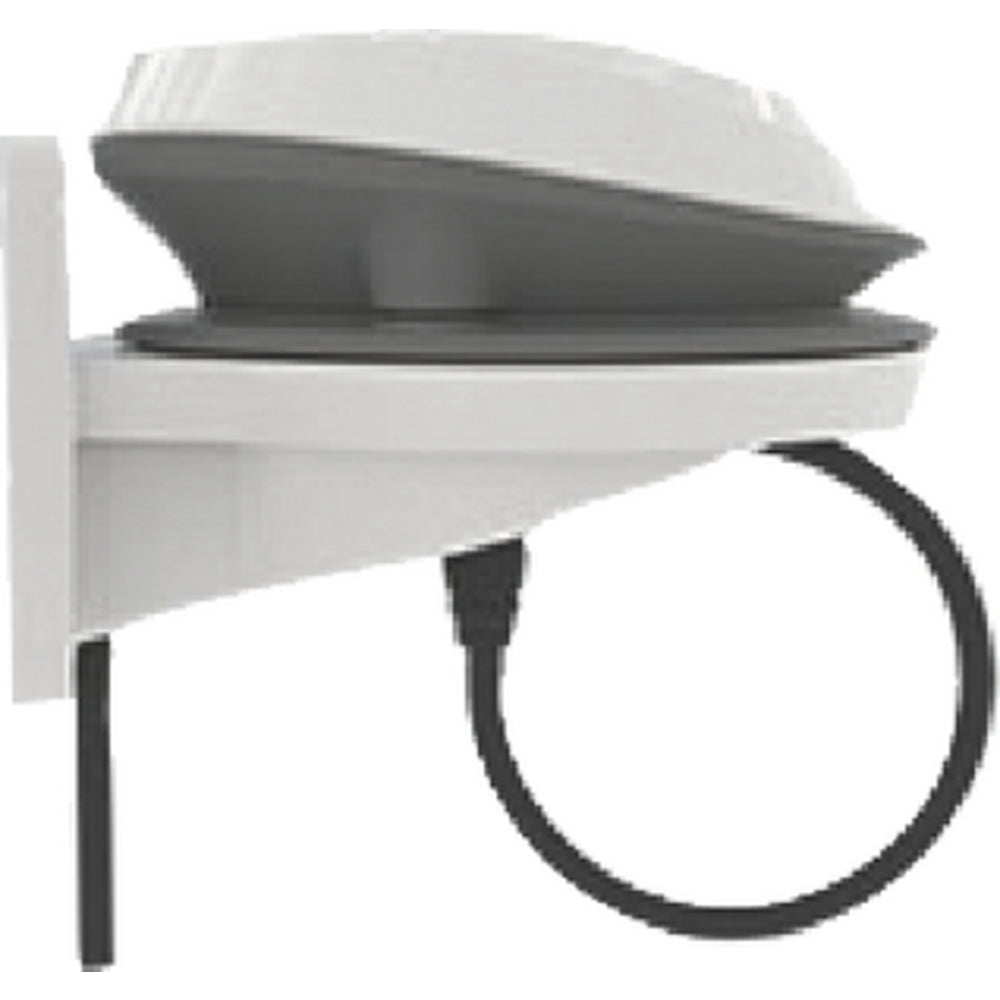

• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof. Best in class.
• Simple installation with a single NMEA 2000r connection

Specifications:

• Supply and Interface: 8-16 V via NMEA 2000
• Power consumption: 0.4 W
• NMEA 2000 Load Equivalence No. (LEN): 1
• NMEA 2000 ports (input/output): 1
• Calibration: Automatic (User Prompted)
• Repeatability: ±1.0&deg (or better)
• Roll/Pitch range: ±45&deg
• Heading accuracy: ±2&deg after calibration
• Dynamic performance:
  • With random excitation of ±10&deg at max 1 Hz: Heading error <2&deg
  • With heading step input of 90&deg at a rate of 10&deg/s: Heading error 10 sec. after turn <2&deg
• Environmental protection: IPX7
• Compass safe distance: 0.5 m (1.7')
• Temperature range operation: -25 to +65&degC (-13 to +149&degF)
• Temperature range Storage: -30 to +70&degC (-22 to +158&degF)
• Dimensions: H: 36 mm (1.42"), W & D: 119 mm (4.69")

What's in the Box:

• Precision 9 Compass
• N2K-T-RD - Micro-C T-connector
• N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000r cable

Learn More:

Click on the links below to learn more about the Precision-9 Compass:

• Compass on Wikipedia
• NMEA 2000 on Wikipedia

Specifications

Product: Navico 000-12607-001 Precision-9 Compass

Brand: Navico

Model: 000-12607-001

Additional Shipping Information:

Shipping Weight: 1.90 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 11.00 in
