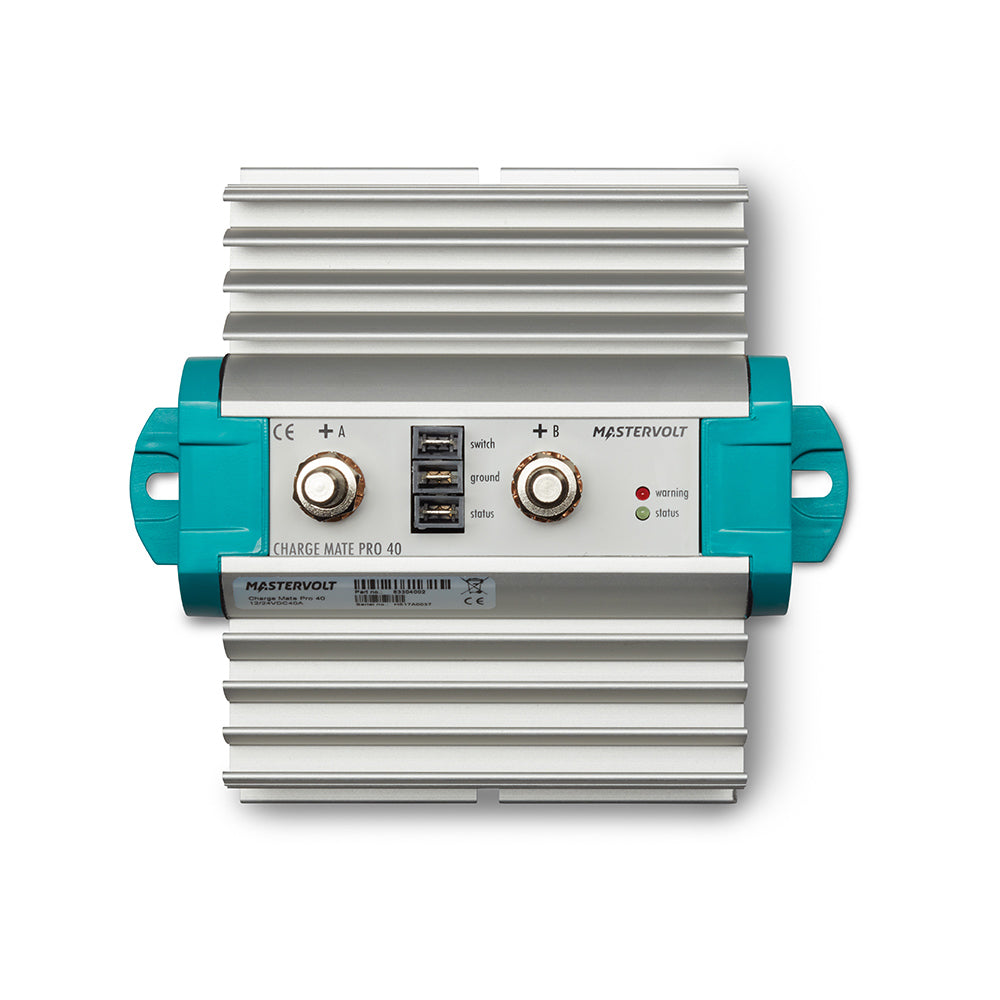

Mastervolt Charge Mate Pro 40 Electronics Relay - 83304002

The Mastervolt Charge Mate Pro 40 Electronics Relay is a current limited electronic charge relay with high efficiency and reverse current protection. It is designed to provide a dedicated charging solution for a secondary battery on board.

The Charge Mate Pro effectively distributes the charger or alternator current between two battery banks, such as a starter and a service battery. It connects both batteries during charging and keeps them isolated when discharging, reducing the risk of a flat starter battery.

This charge relay offers an advantage over mechanical charge relays by limiting the charge current to the second battery. The primary battery, like a starter battery, is charged with priority. The return current is automatically blocked even when the secondary battery has a higher voltage. An emergency start function is possible by connecting an optional bypass switch to the Charge Master Pro.

An example of a marine application for the Charge Mate Pro is the connection of a bow thruster battery to a service battery. It ensures that the service battery is always charged with priority and blocks the return current from the bow thruster battery, guaranteeing that the bow battery remains charged. The current limiting feature also prevents power dips in the onboard electrical network.

The Charge Mate Pro series consists of a 40 Amp and a 90 Amp version, both suitable for charger or alternator applications.

Features:

• Electronic charge coupling with very low voltage drop
• Makes effective dual charging possible
• Suitable for all battery types, including Lithium Ion
• Charge current secondary battery limited to 40 A
• High system reliability by prioritized charging of the main battery
• Unidirectional which blocks return current under all circumstances
• Prevents power dips of the onboard electrical network
• Suitable for all kinds of chargers and alternators
• Monitoring with LED status indication
• IP65 electronics in a corrosion resistant casing with aluminum heat sinks
• Fast and easy installation

General Specifications:

• Remote switch functions: on, off, auto, start assist
• Monitoring: LED (warnings and status indication)
• Output current: limited to 40 A
• Number of battery outlets: 2
• Input voltage range: 9-32 V
• Parallel configuration: yes
• Battery voltage: automatic 12/24 V detection
• Dimensions (hxwxd): 157 x 140 x 80 mm / 6.2" x 5.5" x 3.1"
• Weight: 0.88 kg / 1.9 lb
• Approvals: CE

Technical Specifications:

• Connection possibilities: 3 x fast-on connectors (switch, ground, and status)
• Power consumption: switch open: < 1 mA at 12/24 V DC
• Battery types: all types (Lithium Ion protection via Multi-purpose contact, product code 77030500)
• Switch on voltage: 13.5 V (12 V) / 27 V (24 V)
• Switch on delay: 5 sec.
• Switch off voltage: 12.75 V (12 V) / 25.5 V (24 V)
• Switch off delay: 2.5 sec.
• Relay: electronically (mosfets with low voltage drop of max 0.2 V)
• Temperature range (ambient temp.): -40 &degC to 60 &degC (-40 to 140 &degF)
• Protection degree: IP65

Learn More:

For more information about charge relays, you can visit the Wikipedia page on charge relays.

To learn more about Mastervolt, the manufacturer of the Charge Mate Pro 40 Electronics Relay, you can visit their Wikipedia page.

Specifications

Product: Mastervolt 83304002 Charge Mate Pro 40 Electronics Relay

Brand: Mastervolt

Model: 83304002

Additional Shipping Information:

Shipping Weight: 2.20 lb

Shipping Height: 3.00 in

Shipping Width: 6.00 in

Shipping Length: 9.00 in
