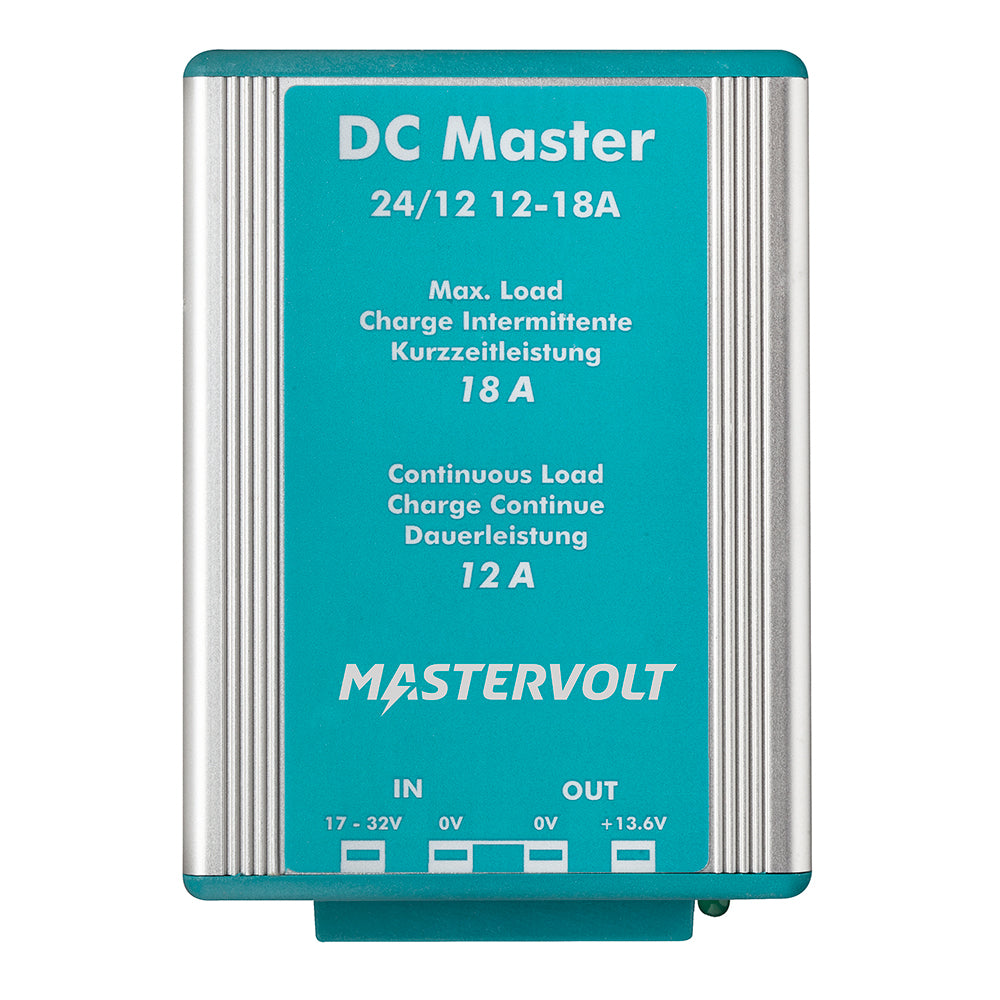

DC-DC Converter (Mastervolt)

The Mastervolt DC-DC Converter is a versatile and reliable power conversion solution designed for recreational and semi-professional use. With its easy installation process using the included mounting bracket, screws, and fasteners, this converter ensures a hassle-free setup. The smart electronics incorporated in this converter eliminate unnecessary heat generation, ensuring optimal performance and efficiency.

This DC-DC Converter provides a continuous output of power, making it suitable for various applications. It also offers two minutes of extra power for short power boosts, ensuring reliable performance during demanding situations.

Product Features:

• Recreational and semi-professional use

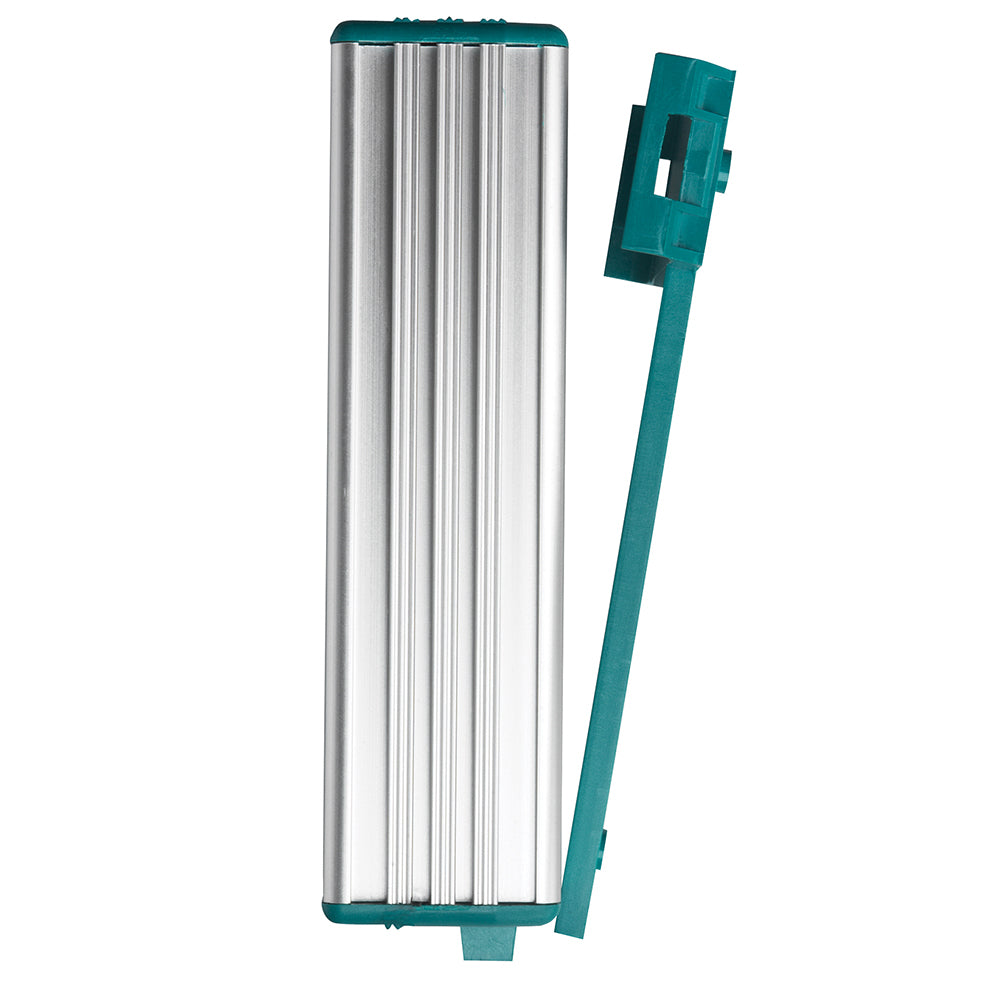

• Easy installation using included mounting bracket, screws, and fasteners
• Smart electronics eliminate unnecessary heat generation
• Continuous output for reliable power supply
• Two minutes of extra power for short power boosts

Specifications:

• General Specifications:
• Nominal output voltage: 13.6 V
• Max. output power: 136W
• Nominal output power: 82W
• Max. output current (for 2 min. intervals): 10A
• Continuous output current: 6A
• Nominal input voltage: 24V
• Input voltage range: 20-32V
• Galvanic isolation: No
• Stabilised: Yes
• Approvals: CE, E-mark
• Technical Specification:
• DC consumption: < 10 mA
• Connections: Fast-on
• Temperature range (ambient temp.): -13 °F to 176 °F
• Sound level: < 30 dBA at 1 mtr
• Protection degree: IP53
• Cooling: Natural cooling
• Dimensions: 3.5 x 3.4 x 2.0 inch

What's in the Box:

• DC Master 24/12-6A Non-isolated
• Mounting bracket with fasteners
• Documentation

Learn More:

• DC-DC Converter on Wikipedia

Specifications

Product: DC-DC CONVERTER (MASTERVOLT)

Brand: Mastervolt

Model: 81400300

Additional Shipping Information:

Shipping Weight: 0.95 lb

Shipping Height: 2.00 in

Shipping Width: 4.00 in

Shipping Length: 6.00 in
