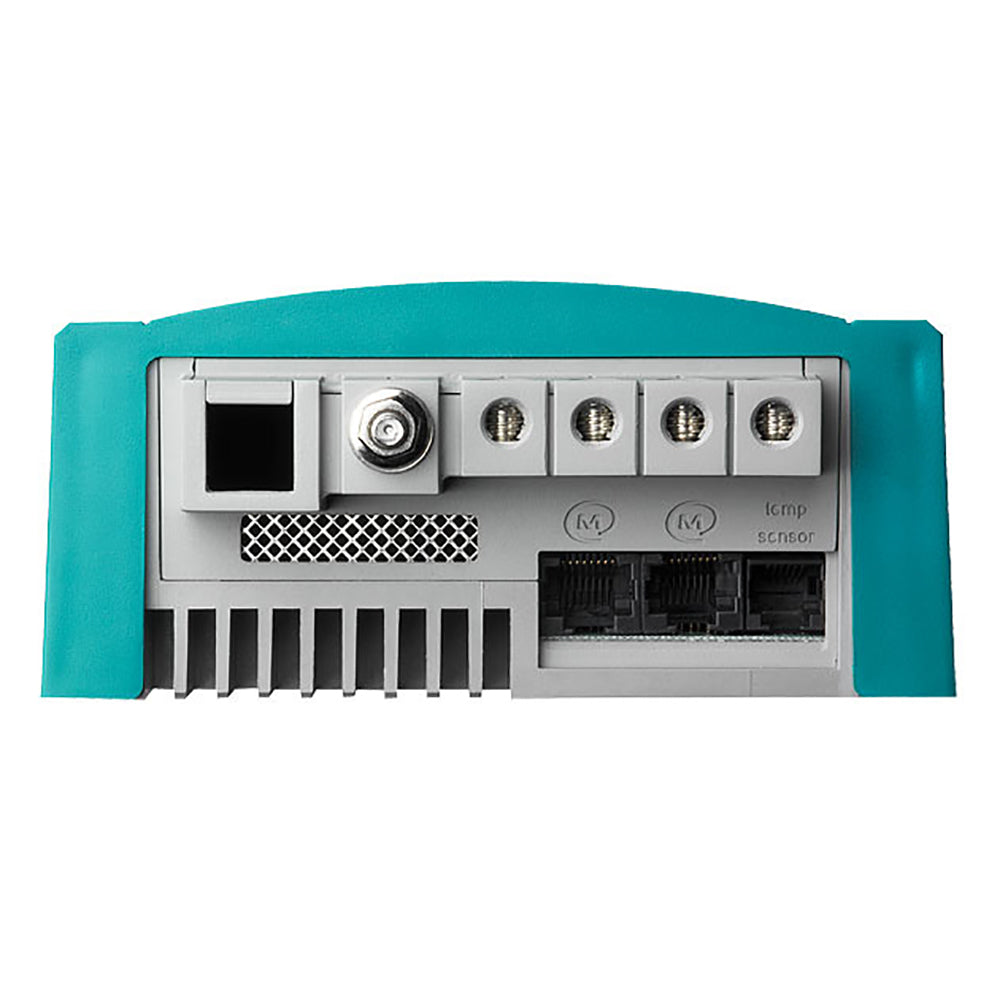

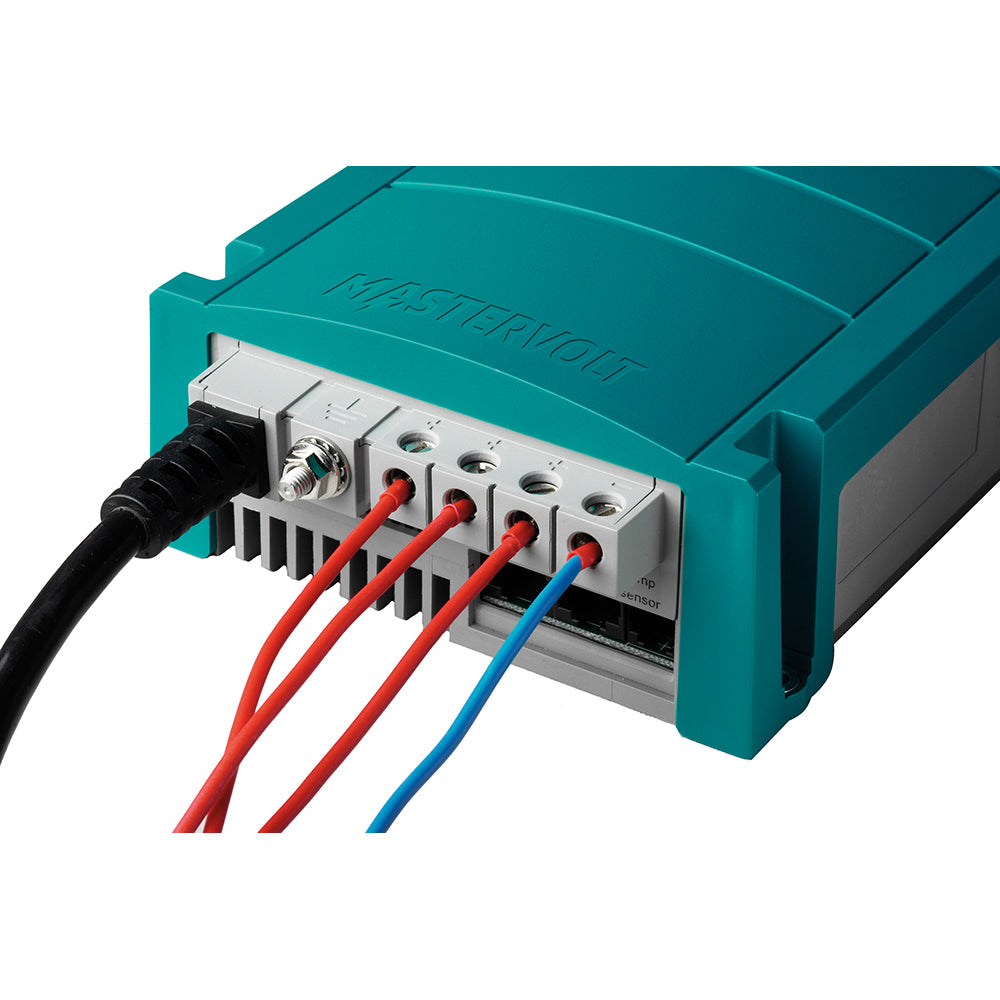

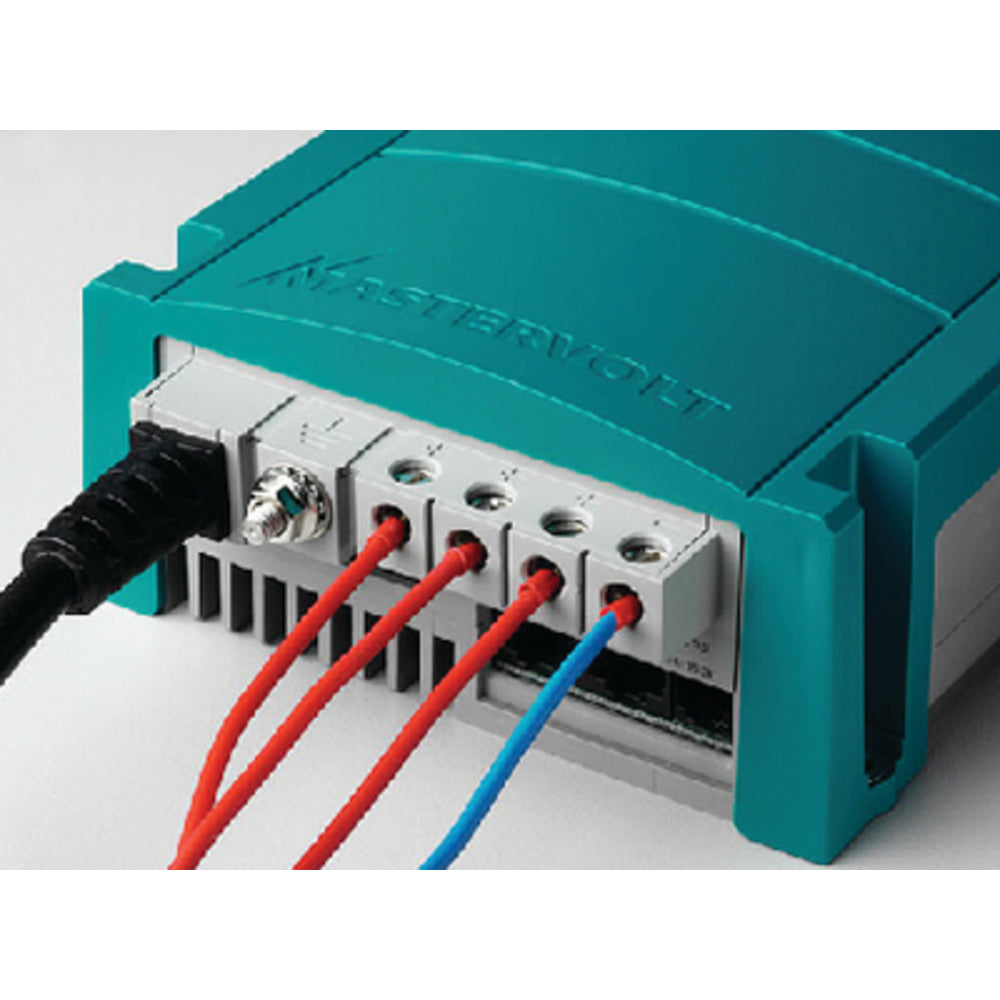

CHARGEMASTER BATTERY CHARGERS (MASTERVOLT)

Make the most of your batteries with the ChargeMaster Battery Chargers from Mastervolt. These battery chargers guarantee fast and complete charging of your batteries no matter where you are in the world. With their 3-Step+ charging technology, they ensure efficient and reliable charging for optimal battery performance.

Features:

• 3-Step+ charging technology for fast and complete charging
• Safe and complete charging due to standard safety features
• Memory function prevents overcharging in case of an unstable power supply
• Clear control panel for easy operation
• Easy installation process
• Built-in system functionality (MasterBus) for seamless integration with other Mastervolt products (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2)

The ChargeMaster Battery Chargers are designed to provide a maximum charging capacity worldwide with their auto-ranging feature. They operate perfectly on any mains voltage (90-265 V AC, 50 or 60 Hz) and ensure efficient charging with their cos phi 1 regulation, maximizing limited generator capacity.

The ChargeMaster series offers three equal charge outputs. Smaller models come pre-installed with two meters of cable for a convenient plug & play solution, while larger models have one full output for service batteries and two 10 A outputs for starter batteries.

Specifications:

• Total charge current: 25A
• Number of battery outlets: 3
• Nominal output voltage: 12V
• Charge current second output: 25A
• Charge current third output: 25A
• Battery capacity range: 50-250ah
• Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
• AC connection: 2 mtr AC cable
• Power supply mode: Yes
• Display/read-out: LED display

Technical Specifications:

• Charge characteristic: IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
• Charge voltage Bulk: 14.4V
• Charge voltage Absorption: 14.25V
• Absorption time: 4 hours
• Charge voltage Float (wet batteries): 13.25V
• Charge voltage Float (gel/AGM batteries): 13.8V
• Voltage compensation: Automatic
• Power consumption (DC side): < 2 mA
• Full load consumption (230 V AC): 450 W
• Current Control function: No
• Temperature range (ambient temp.): -25 &degC to 60 &degC, derating > 40 &degC (-13 &degF to 140 &degF)
• Protection degree: IP23
• Cooling: Vario fan
• MasterBus compatible: Yes
• Dimensions: 9.2 x 5.2 x 2.4 inch

What's in the Box:

• ChargeMaster 12/25-3
• DC-wiring: 2 pcs. positive (red) and 1 pc. negative (black)
• MasterBus terminating device

Learn More:

• Battery Charger - Wikipedia
• Mastervolt - Wikipedia

Specifications

Product: CHARGEMASTER BATTERY CHARGERS (MASTERVOLT)

Brand: Mastervolt

Model: 44010250

Additional Shipping Information:

Shipping Weight: 4.90 lb

Shipping Height: 5.00 in

Shipping Width: 8.00 in

Shipping Length: 11.00 in
