Garmin Airmar B175H 1kW CHIRP High 130-210kHz Thru-Hull 12&deg Tilt Transducer 010-11937-21

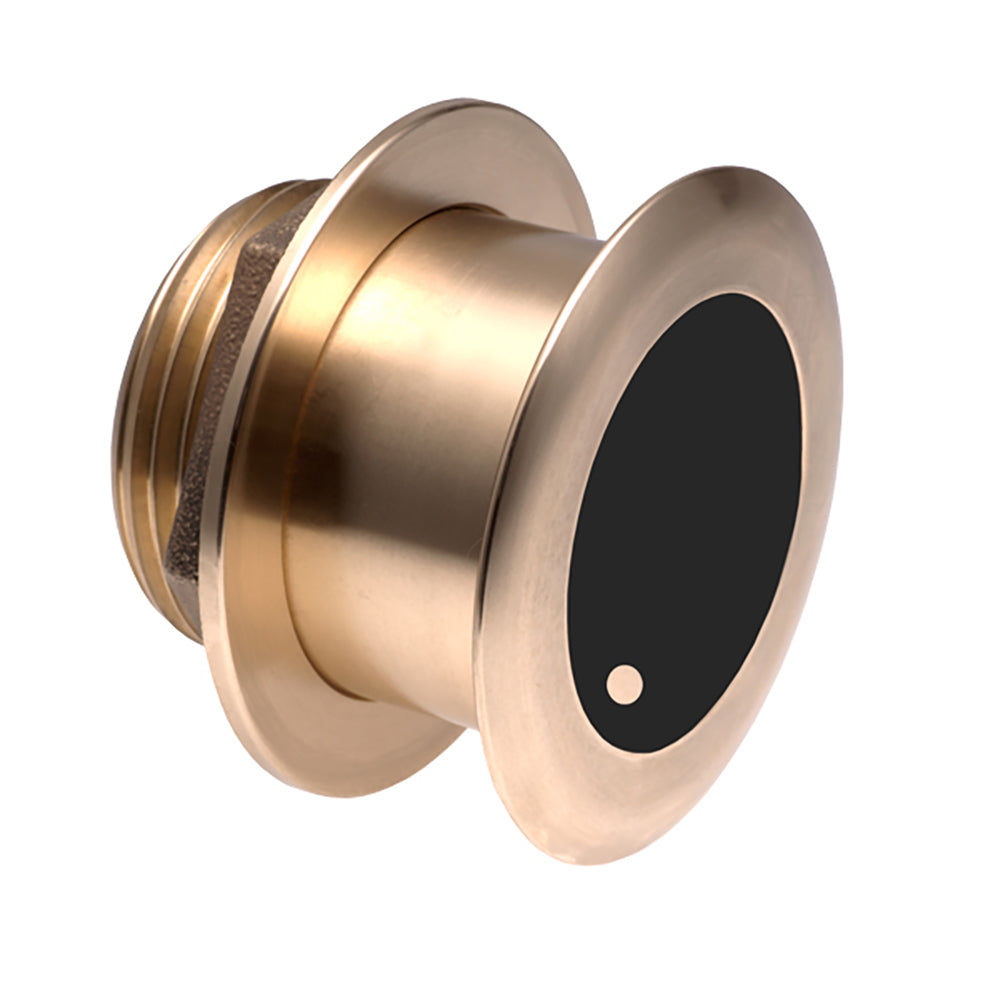

The Garmin Airmar B175H is a high-performance transducer designed for navigational use. With a power output of 1kW, this transducer allows for accurate and detailed sonar imaging without the need for a fairing block. Its flush-mounted bronze housing protrudes less than 1/4-inch outside the hull, making it suitable for use on trailer rollers and bunks without the risk of damage.

The tilted element inside the transducer can accommodate all hull deadrises, eliminating the need for a fairing block. This transducer offers maximum flexibility with low, medium, and high-frequency versions, allowing users to choose the frequency that best suits their needs.

Designed for fiberglass and wood hulls, the Garmin Airmar B175H has an 8-pin connector and offers a depth capability of up to 1,200 ft. It operates within a frequency range of 130-210 kHz, providing accurate and reliable data. The transducer has a beamwidth of 9-15 degrees and a deadrise angle of 8-15 degrees.

The transducer kit includes installation instructions, which should be followed carefully to avoid any damage to your boat.

Product Features:

• Type: Navigator transducer
• Brand compatibility: Garmin
• Compatibility: GPSMAP 1020xs, GPSMAP 1040xs, GPSMAP 527xs, GPSMAP 547xs, GPSMAP 7407xsv, GPSMAP 7408xsv, GPSMAP 7410xsv, GPSMAP 7412xsv, GPSMAP 7416xsv, GPSMAP 741xs, GPSMAP 7607xsv, GPSMAP 7608xsv, GPSMAP 7610xsv, GPSMAP 7612xsv, GPSMAP 7616xsv, GPSMAP 840xs, GSD 25 Pr
• Product color: Bronze
• Material: Bronze
• Waterproof: Yes
• Operating frequency range: 130 - 210 kHz
• Deadrise angle: 8 - 15 degrees
• Beamwidth: 9 - 15 degrees
• Maximum depth: 365.76 ft
• Installation type: Thru-hull
• Transducer measured parameters: Depth, Temperature
• Transducer connector: 8-pin
• Manual: Yes
• Power: 1000 Watts

Learn More

• Transducer
• Garmin
• GPSMAP 1000 series
• GPSMAP 500 series
• GPSMAP 700 series
• GSD 25

Specifications

Product: Garmin 010-11937-21 Airmar B175H 12° Tilt 1Kw Chirp High 130-210Khz Thru-Hull

Brand: Garmin

Model: 010-11937-21

Additional Shipping Information:

Shipping Weight: 11.00 lb

Shipping Height: 8.00 in

Shipping Width: 10.00 in

Shipping Length: 12.00 in
