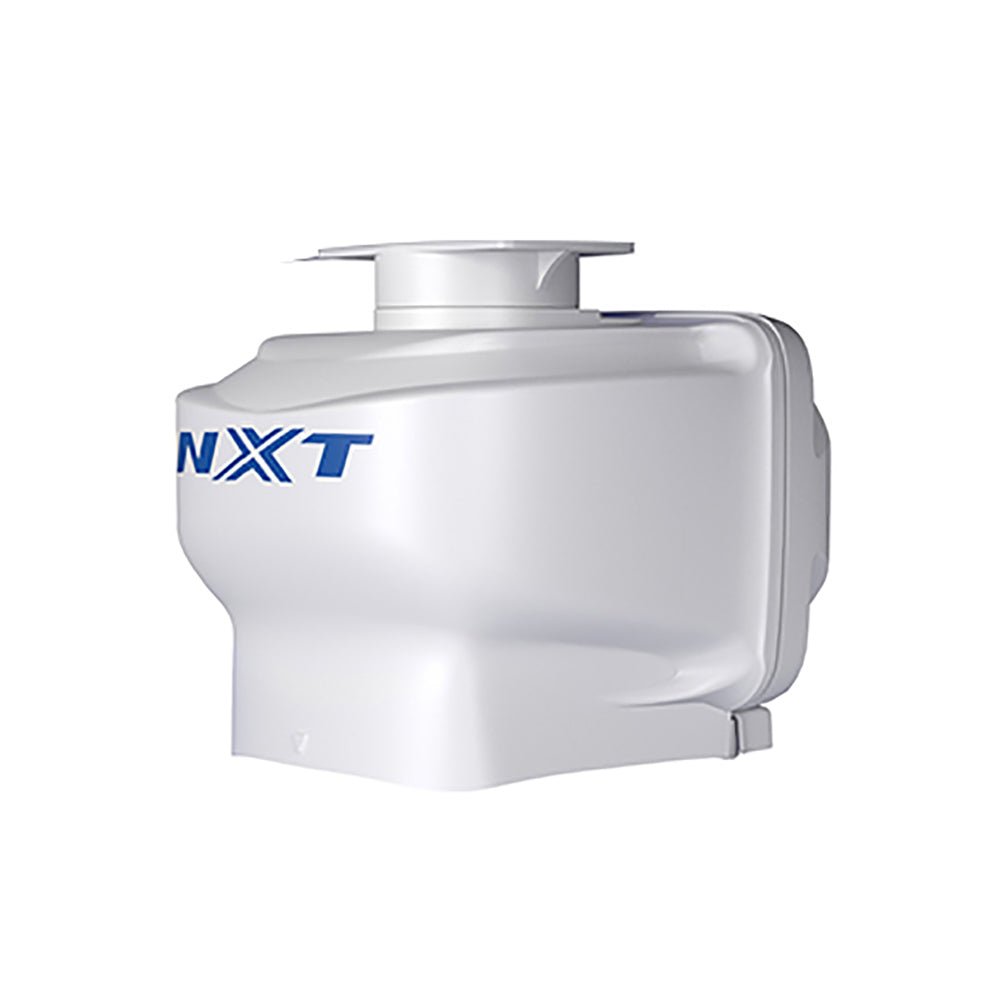

Furuno DRS25ANXT Doppler Radar Pedestal

The Furuno DRS25ANXT Doppler Radar Pedestal is a high-performance solid-state radar system that offers advanced features such as Target Analyzer, Fast Target Tracking, and RezBoost Beam Sharpening. This radar pedestal is designed for use with X-Band antennas and operates on 24 VDC power.

Product Features:

• 200 Watt Solid-State Doppler Radar
• Target Analyzer with Doppler technology
• Fast Target Tracking
• RezBoost Beam Sharpening
• Enhanced Bird Mode for fish detection

Specifications:

• Band: X-Band
• Beam Width: 1.35 degrees or 1.9 degrees or 2.3 degrees, depending on array choice
• Power Usage: 24 VDC
• Power Output: 200 W

The Furuno DRS25ANXT Doppler Radar Pedestal is equipped with the latest NXT Radar technology, which includes pulse compression, Target Analyzer, and Fast Target Tracking using Doppler technology. With its compact design, this radar pedestal delivers the performance of a larger radar system.

The Target Analyzer function utilizes Doppler technology to automatically change the color of approaching targets. Green targets indicate stationary or moving away targets, while red targets represent vessels moving towards your own vessel. This feature enhances safety and situational awareness, regardless of vessel speed.

Fast Target Tracking provides accurate speed and course information for selected targets. Estimation of other vessel's course and speed becomes simplified, and an alarm is triggered when a vessel approaches yours. Doppler technology enables automatic display of target vectors.

Furuno's exclusive RezBoost Beam Sharpening technology is incorporated in the DRS25ANXT, delivering impressive performance. By setting RezBoost to MAX, the radar achieves the sharpness of a larger open array antenna.

The enhanced Bird Mode of the DRS-NXT series helps identify birds gathering around schools of fish at the sea surface. It automatically adjusts gain and sea settings for optimal visibility, providing valuable insights for fishing enthusiasts.

REQUIRED OPTION: This radar pedestal requires the use of a compatible array, such as the 3.5ft part # XN10A/3.5, 4ft part# XN12A/4, or 6ft part# XN13A/6 (sold separately). Additionally, an optional signal/power cable is required for operation.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly for any issues or concerns.

Learn More:

• Radar on Wikipedia
• Doppler Radar on Wikipedia

Specifications

Product: Furuno Drs25Anxt Doppler Radar Pedestal Less Cable And Antenna

Brand: FURUNO

Model: DRS25ANXT

Additional Shipping Information:

Shipping Weight: 42.00 lb

Shipping Height: 16.00 in

Shipping Width: 17.00 in

Shipping Length: 19.00 in
