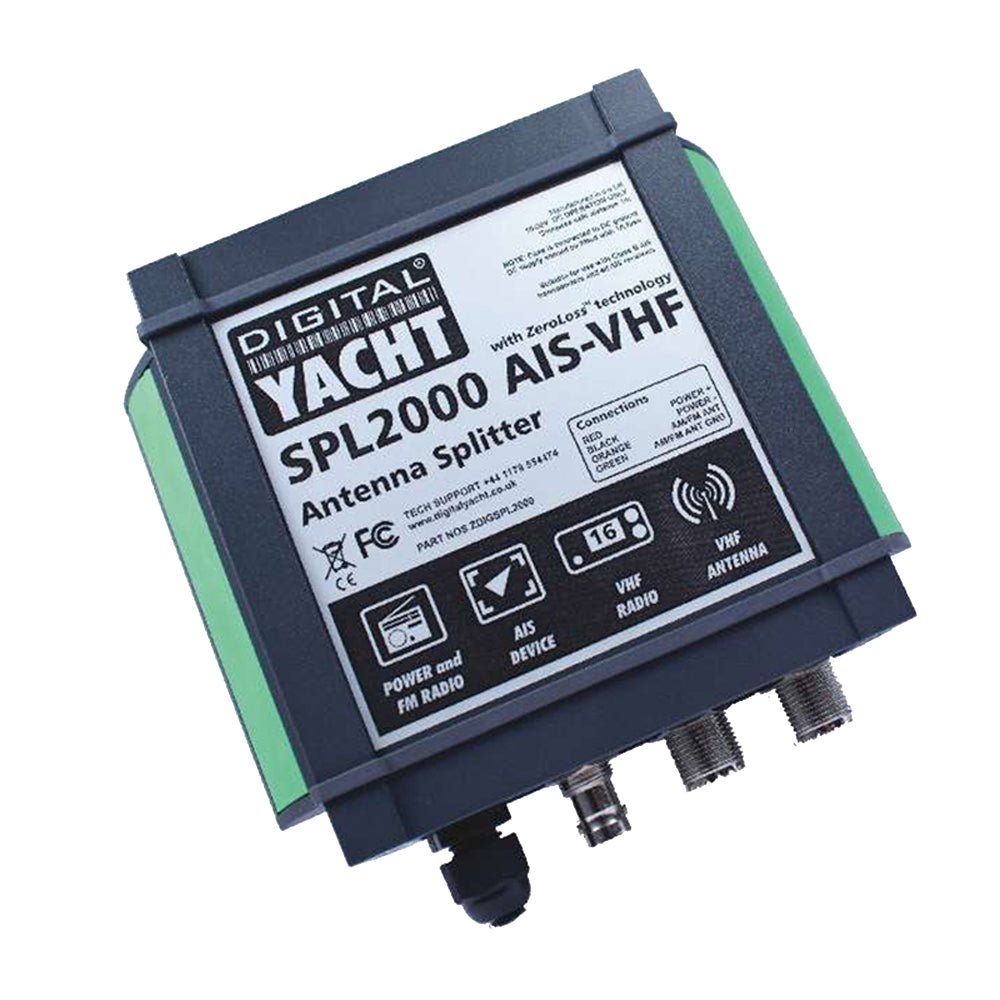

Digital Yacht DIY ZDigspl2000 VHF-AIS-FM Antenna Splitter

The Digital Yacht DIY ZDigspl2000 VHF-AIS-FM Antenna Splitter is a versatile device that enables an existing VHF antenna to be used for both the standard VHF and AIS system. With its patented ZeroLossTM technology, this antenna splitter offers exceptional performance and is compatible with all Class B transponders and receivers.

Key Features:

• Enables an existing VHF antenna to be used for both the standard VHF and AIS system
• Patented ZeroLossTM technology for exceptional performance
• Works with all Class B transponders and receivers
• Supplied with power cable, PL259-PL259 cable assembly, and BNC-BNC cable assembly for easy installation (all cables 0.75m long)
• AM-FM radio antenna connection for standard car stereo radio (integrated in power cable)
• 12v or 24v operation and low power consumption
• Fail-safe operation
• Same size and design as the new AIT2000
• Makes installation of an AIS receiver or transponder very quick and simple
• Saves on additional antenna clutter

An AIS receiver or transponder requires a VHF antenna, but Digital Yacht's DIY ZDigspl2000 VHF-AIS-FM Antenna Splitter allows an existing antenna to be used for both AIS and VHF (DSC) systems, and even with an AM/FM radio. Unlike most simple splitters, it can also be used with a class B transponder system and incorporates special circuitry to ensure safe operation of the two transmitting devices.

The unit has four simple connections: one input for the main VHF antenna and outputs for the AIS receiver/transponder, DSC VHF, and an optional car radio output. It utilizes Digital Yacht's new, patented ZeroLossTM technology to ensure the best possible reception and transmission from all devices. Most importantly, it is fail-safe, so any malfunction or power loss will not affect the main VHF operation.

The DIY ZDigspl2000 VHF-AIS-FM Antenna Splitter is waterproof and designed to match the aesthetics of the current range of transponders and receivers, making it easy to integrate into any vessel. It operates on 12V or 24V systems and features three status LEDs that indicate correct power supply and AIS/VHF transmission status.

Specifications:

• Model: DIGSPL2000
• Power Supply: 12V or 24V
• Cable Lengths: Power cable, PL259-PL259 cable assembly, and BNC-BNC cable assembly (all 0.75m long)
• Waterproof: Yes

Learn More:

For more information about VHF antennas, AIS systems, and FM radio, you can visit the following Wikipedia pages:

• VHF Antenna
• Automatic Identification System (AIS)
• FM Radio

Specifications

Product: Diy Zdigspl2000 Digital Yacht Spl2000 Splitter Vhf-Ais From One Antenna Fm

Brand: Digital Yacht

Model: ZDIGSPL2000

Additional Shipping Information:

Shipping Weight: 2.20 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
