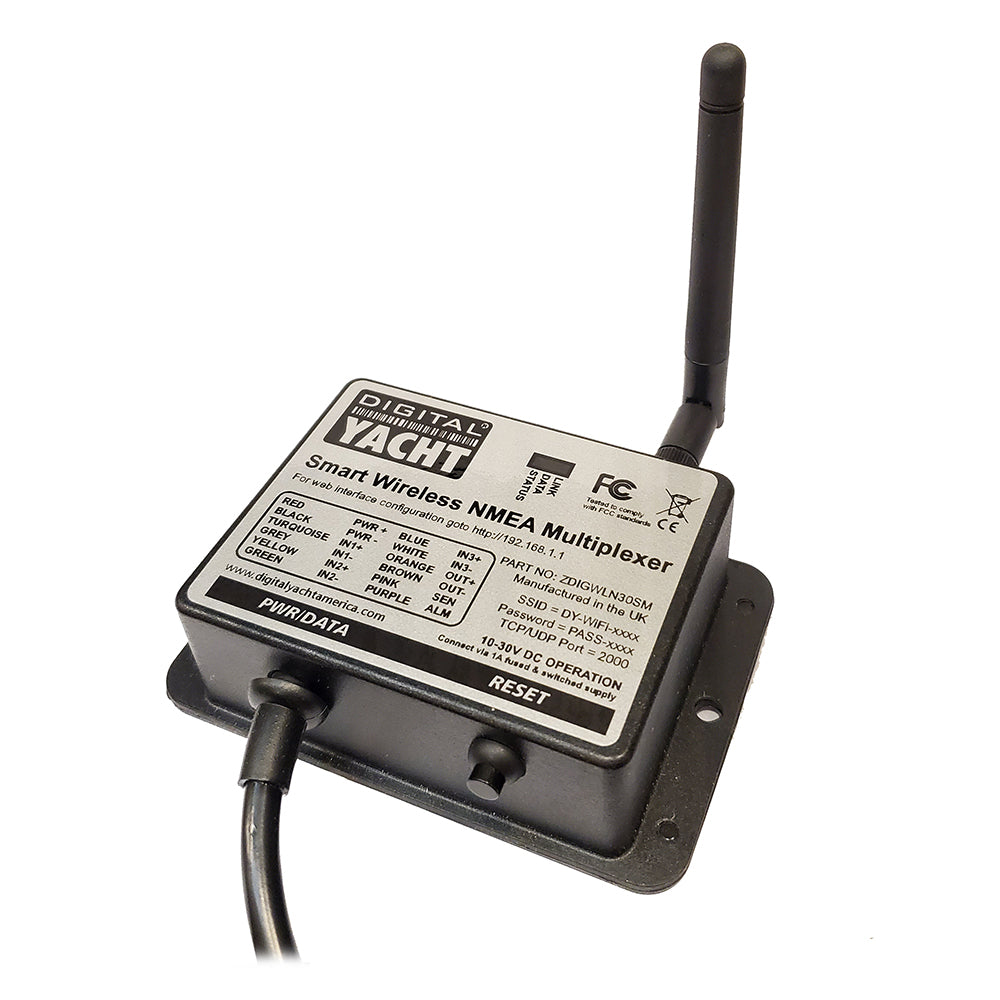

Digital Yacht WLN30 Smart NMEA Wireless Multiplexer

The Digital Yacht WLN30 Smart NMEA Wireless Multiplexer is a smart NMEA to WiFi multiplexer designed to connect your smartphone and other wireless devices to your boat's navigation systems. It features three NMEA0183 inputs and an easy web interface configuration.

With the WLN30, you can connect to existing onboard GPS, AIS, and instrument systems and transfer data wirelessly to an iPad or tablet, allowing compatible apps to display and compute real-time information. This creates a secure, password-protected WiFi network on board to footprint the boat with data.

Real-time AIS target positions and identity data can be displayed on detailed electronic charting through compatible apps, including Weather4D, TimeZero, iAIS, iSailor, SailGrib, Seapilot, and hundreds more. The tablet becomes a full-function navigation display.

The WLN30 has three NMEA0183 inputs and one NMEA0183 output, which can be programmed through its simple browser interface to operate at 4800 or 38400 baud rates. Data received on the three inputs is multiplexed together and transmitted to any wireless devices connected to the WLN30's wireless network. The same multiplexed data is also available on the NMEA 0183 Output or in an alternative mode the NMEA 0183 Output can be configured to forward data from the wireless application, such as next waypoint or autopilot data, to other NMEA 0183 equipment.

All configuration of the WLN30 can be done through its own simple web interface. No complicated programming software or app is required, and you can even view the received NMEA data in the web browser for easy fault finding of issues.

The WLN30 supports TCP and UDP network protocols for maximum compatibility with apps. If you want to have full bi-directional control of an autopilot, with guaranteed data integrity or you want to be the only person receiving the data, then select TCP. If, however, you want to receive the same data on multiple devices, for instance, a PC at the chart table and an iPad on deck, then select the UDP broadcast protocol.

With its three NMEA0183 inputs, you can also utilize our SeaTalk to NMEA adaptor to allow SeaTalk instrument data to be interfaced directly to the WLN30 or our iKonvert gateway to connect NMEA 2000 data. It now works with the popular Navionics Boating App for Apple iOS and Android to display GPS and AIS data on your Navionics charts.

Features:

• Three input NMEA 0183 to WiFi Multiplexer (4800 baud or 38400 baud)
• Multiplexed data transmitted over WiFi and NMEA 0183 Output
• Web interface for setup and initial programming
• Set baud rates, SSID, and password through the web interface
• Supports both TCP and UDP (for multiple connections) protocols
• View received NMEA data in the web browser for easy fault finding of issues
• Supports a bi-directional WiFi interface for autopilot control
• Fully compatible with popular navigation apps and software
• Easy to install IPX4 black box solution

Specifications:

• Inputs: Three NMEA0183
• Output: One NMEA0183
• Transmission: WiFi
• Protocols: TCP and UDP
• Compatibility: iOS and Android devices
• Dimensions: 4.33 x 2.76 x 1.18 inches
• Weight: 0.3 lbs

Specifications

Product: Digital Yacht Zdigwln30Sm Wln30 Smart Wireless Nmea Multiplexer

Brand: Digital Yacht

Model: ZDIGWLN30SM

Additional Shipping Information:

Shipping Weight: 0.50 lb

Shipping Height: 2.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
