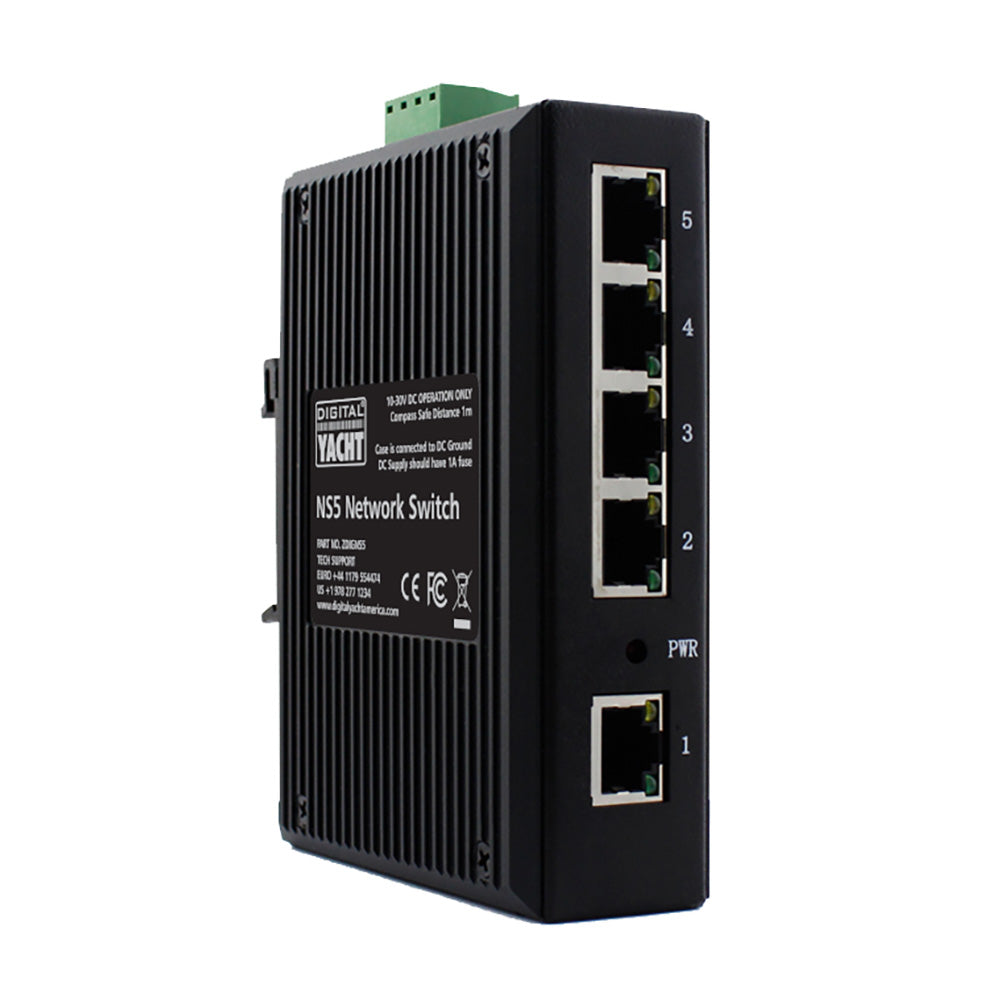

Digital Yacht NS5 5-Port Marine Network Switch - ZDIGN5

The Digital Yacht NS5 5-Port Marine Network Switch is a reliable and rugged solution for expanding the number of wired Ethernet connections on your boat. While wireless connectivity is becoming more common, a wired Ethernet connection still offers the fastest and most reliable network connection onboard. Whether you need to stream TV, use VOIP, monitor security cameras, or utilize other data-intensive services, the NS5 Network Switch ensures optimum data transfer speed.

Installation is quick and easy. Simply connect one of the NS5's RJ45 sockets to a LAN socket on our 4GConnect or 4GXtream routers using a standard network cable. Then, wire the NS5 directly to your boat's 12v or 24v DC supply. Our 4G router will continue to provide IP addresses to any device plugged into the NS5 via DHCP. The status of all Ethernet connections can be easily monitored through the flashing Yellow and Green LEDs on each of the NS5's ports.

Features:

• 5 Port Network Switch
• 12/24v DC low power operation
• Dual redundancy power supply design
• Connects to the router via RJ45 Cat 5/6 network cable connection
• Supports 10/100 base-T
• DIN Rail (IEC/EN 60715 - 35 x 7.5mm) mounting bracket and 100mm rail included
• Status indicators for power and network link status
• Version: NMEA0183, NMEA2000

Specifications:

• 5 Port Network Switch
• 12/24v DC low power operation
• Dual redundancy power supply design
• Connects to the router via RJ45 Cat 5/6 network cable connection
• Supports 10/100 base-T
• DIN Rail (IEC/EN 60715 - 35 x 7.5mm) mounting bracket and 100mm rail included
• Status indicators for power and network link status
• Version: NMEA0183, NMEA2000

Learn More:

• Ethernet
• VOIP
• IP Address
• NMEA0183
• NMEA2000

Specifications

Product: Digital Yacht Zdigns5 Ns5 5 Port Marine Network Switch

Brand: Digital Yacht

Model: ZDIGNS5

Additional Shipping Information:

Shipping Weight: 0.80 lb

Shipping Height: 2.00 in

Shipping Width: 6.00 in

Shipping Length: 7.00 in
