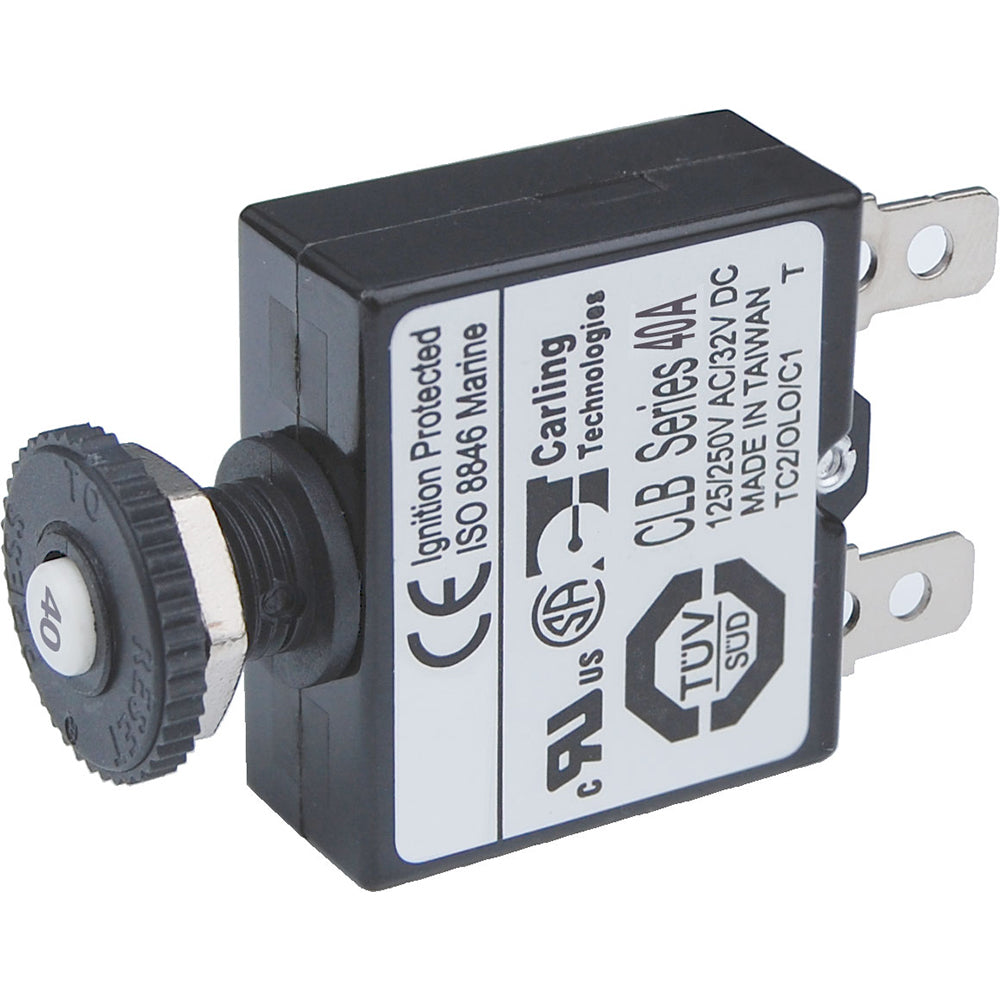

Blue Sea Systems 7061-BSS 40A Push Button Quick Connect Circuit Breaker

The Blue Sea Systems 7061-BSS is a push button reset only quick connect circuit breaker with a 40-amp rating. It is designed for branch circuit protection and can also be used for 24-hour circuit protection. The compact design enables high density circuit protection configurations, making it ideal for use in Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. The push-to-reset operation and "Trip Free" design ensure that the circuit breaker cannot be held "ON" during a fault current condition, providing optimal safety. The breaker is also ignition protected, making it safe for installation aboard gasoline powered boats. An optional push button waterproof boot is available to protect the circuit breaker in wet environments and resist discoloration and cracking.

Product Features

• Push button reset only quick connect circuit breaker
• 40-amp rating
• Designed for branch circuit protection
• Can be used for 24-hour circuit protection
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• "Trip Free" design ensures safety during fault current conditions
• Ignition protected - Safe for installation aboard gasoline powered boats
• Optional push button waterproof boot protects circuit breaker in wet environments and resists discoloration and cracking

Specifications

• Amperage: 40A
• Maximum Voltage: 32vDC
• Mounting: Panel Mount 3/8-27 UNS
• Circuit Breaker Type: Thermal trip, manual push-button reset only
• Terminal Type: 1/4 Male Quick Connect
• Interrupt Capacity: 3000A at 14.7V, 2500A at 28V
• Minimum Operating Temperature: -10° C
• Maximum Operating Temperature: 60° C

Learn More

• Circuit Breaker
• Thermal Trip
• Voltage
• Temperature

Specifications

Product: Blue Sea Systems 7061-Bss 40A Push Button Qucik Connect Circuit Breaker

Brand: Blue Sea Systems

Model: 7061

Additional Shipping Information:

Shipping Weight: 0.10 lb

Shipping Height: 1.00 in

Shipping Width: 3.00 in

Shipping Length: 5.00 in
