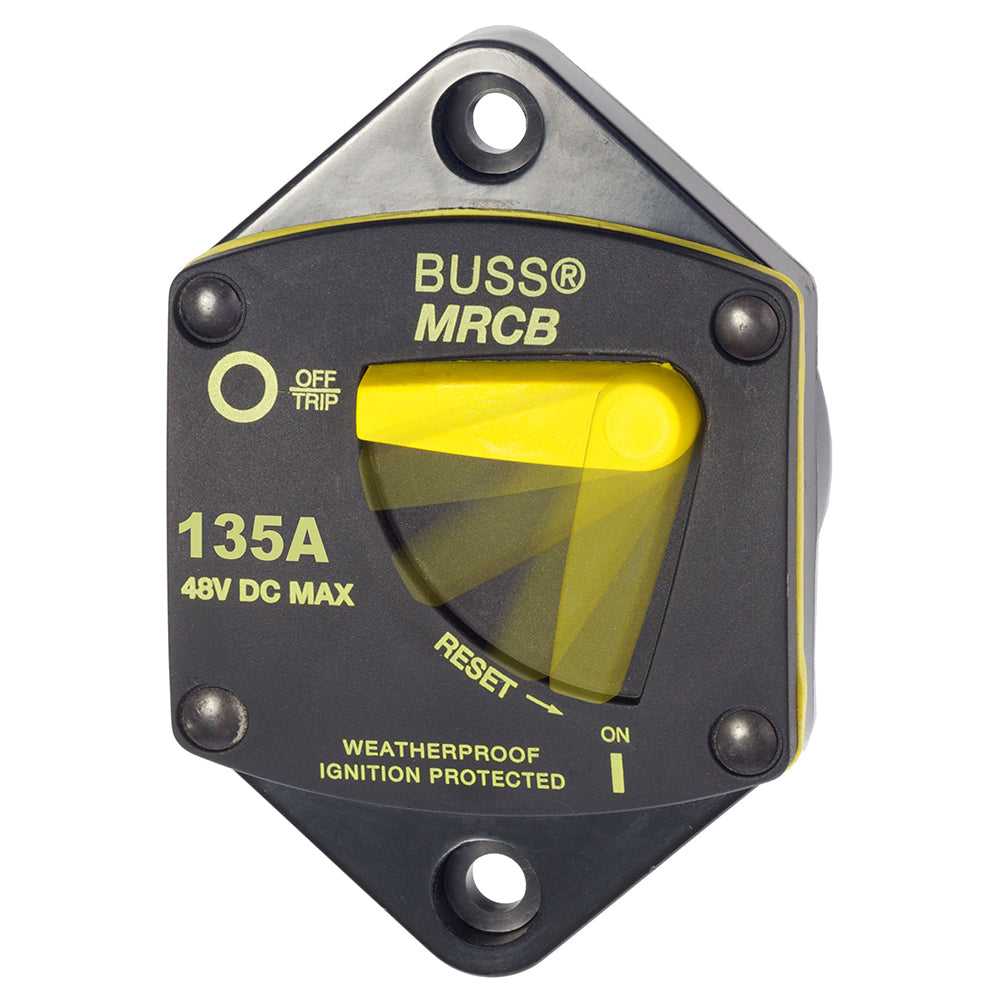

Blue Sea Systems 7047-Bss 187-Series 135 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 7047-Bss 187-Series 135 Amp Circuit Breaker Panel Mount combines switching and circuit protection into a single device. It is designed to meet SAE J1171 external ignition protection requirements and features a clear, single lever operation. The "Trip Free" design ensures that the circuit breaker cannot be held "ON" during a fault current condition. It is waterproof and has recessed mounting holes for a clean appearance. The self-trimming case eliminates the need for mounting panels or trim bezels, and the round case allows for easy installation with a standard-sized hole saw. The circuit breaker has large clearance around terminal studs that accept heavy gauge wire lugs, and the robust 5/16 terminals provide high torque connections. The large lever with vertical/horizontal orientation provides indication of trip status, and the breaker is ignition protected, making it safe for installation aboard gasoline-powered boats.

Features:

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Self-trimming case eliminates the need for mounting panels or trim bezels
• Round case permits easy installation with standard-sized hole saw
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - safe for installation aboard gasoline-powered boats

Specifications:

• Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free
• Type: Thermally Responsive Bi-Metal Blade
• Case Material: Thermoset Polyester
• Voltage Rating: 48 Volts DC Maximum
• Interrupt Rating:
  • 5,000 Amperes at 12 Volts DC
  • 3,000 Amperes at 24 Volts DC
  • 1,500 Amperes at 42 Volts DC
• Operating Temperature Range: -25&degC to +82&degC

Learn More:

• Circuit Breaker - Wikipedia

Specifications

Product: Blue Sea Systems 7047-Bss 187-Series 135 Amp Circuit Breaker Panel Mount

Brand: BLUE SEA

Model: 7047-BSS
