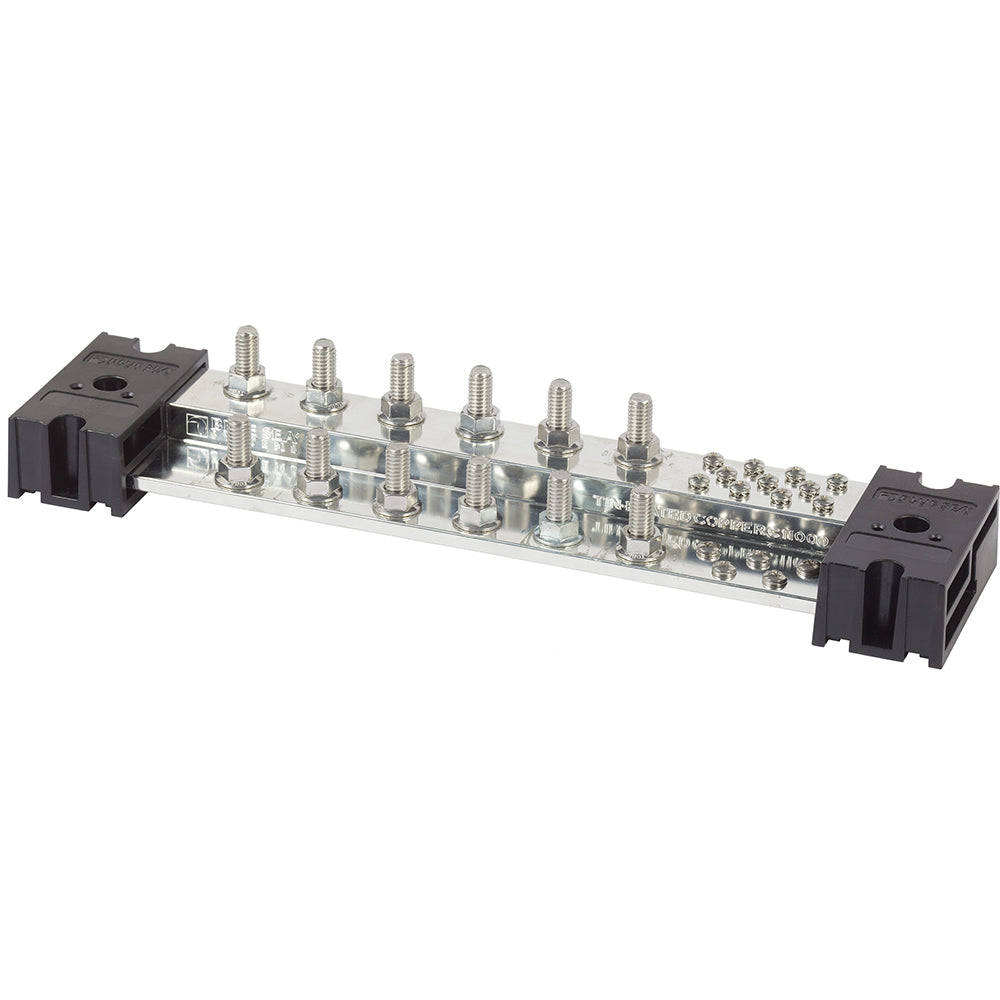

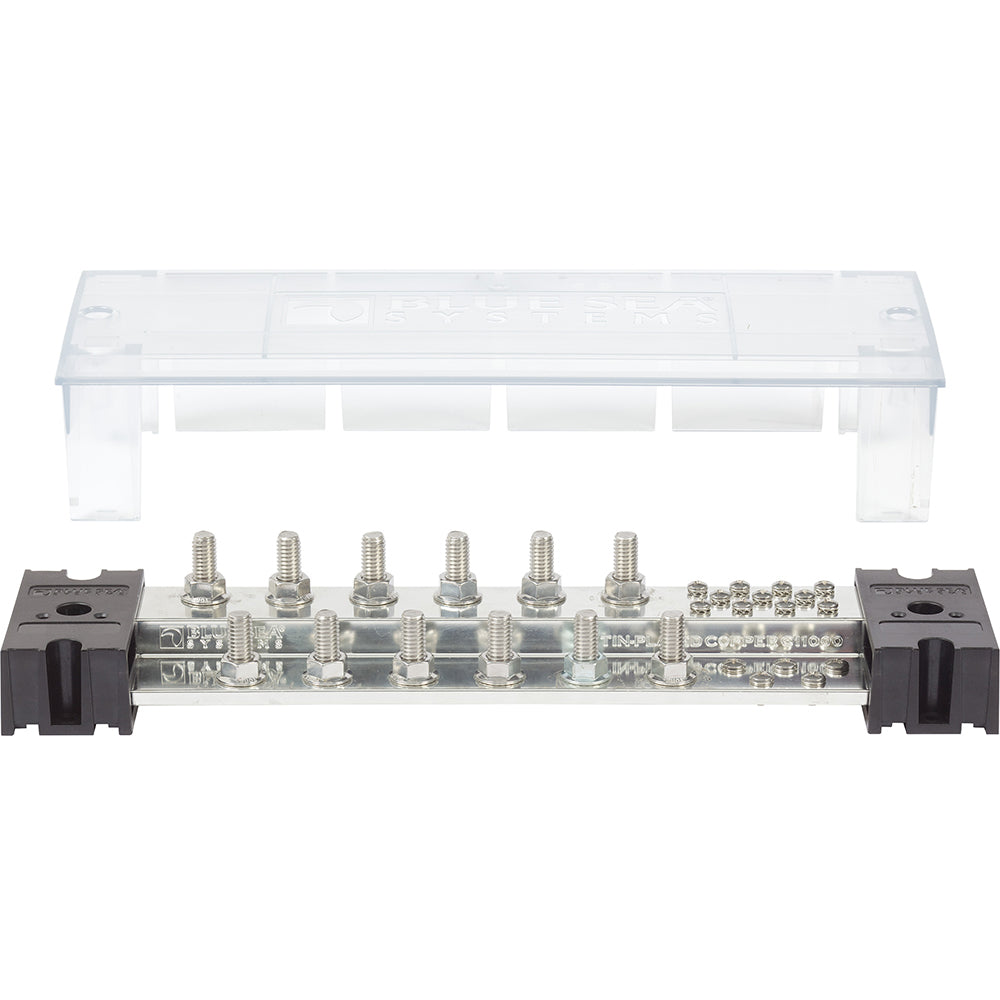

Blue Sea Systems PowerBar 1000 12-3/8" Terminal Studs Cover (1991)

The PowerBar 1000 is the perfect solution for complex wiring systems that require a single point to consolidate large and small conductors. It offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks. The tin plated pure electrical copper ensures maximum conductivity, while the stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars. The busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables. One-piece serrated flange nuts ensure correct and secure connections, while stainless steel 8-32 screws with captive lock washers secure smaller gauge wires. The busbar may be cut to a shorter length to accommodate constricted spaces, and bi-directional busbar end caps allow the ganging of additional busbars. The snap-on insulating cover meets ABYC and USCG requirements and includes a label recess.

Features:

• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity
• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• One-piece serrated flange nuts ensure correct and secure connections
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
• Busbar may be cut to a shorter length to accommodate constricted spaces
• Bi-directional busbar end caps allow the ganging of additional busbars
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess

Specifications:

• Number of Terminal Studs: 12
• Continuous Rating: 1000A
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts #10 (M5) Screws
• Terminal Stud Size: 3/8

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications

Product: Blue Sea Systems 1991 Powerbar 1000 12 3/8" Terminal Studs Cover

Brand: Blue Sea Systems

Model: 1991
