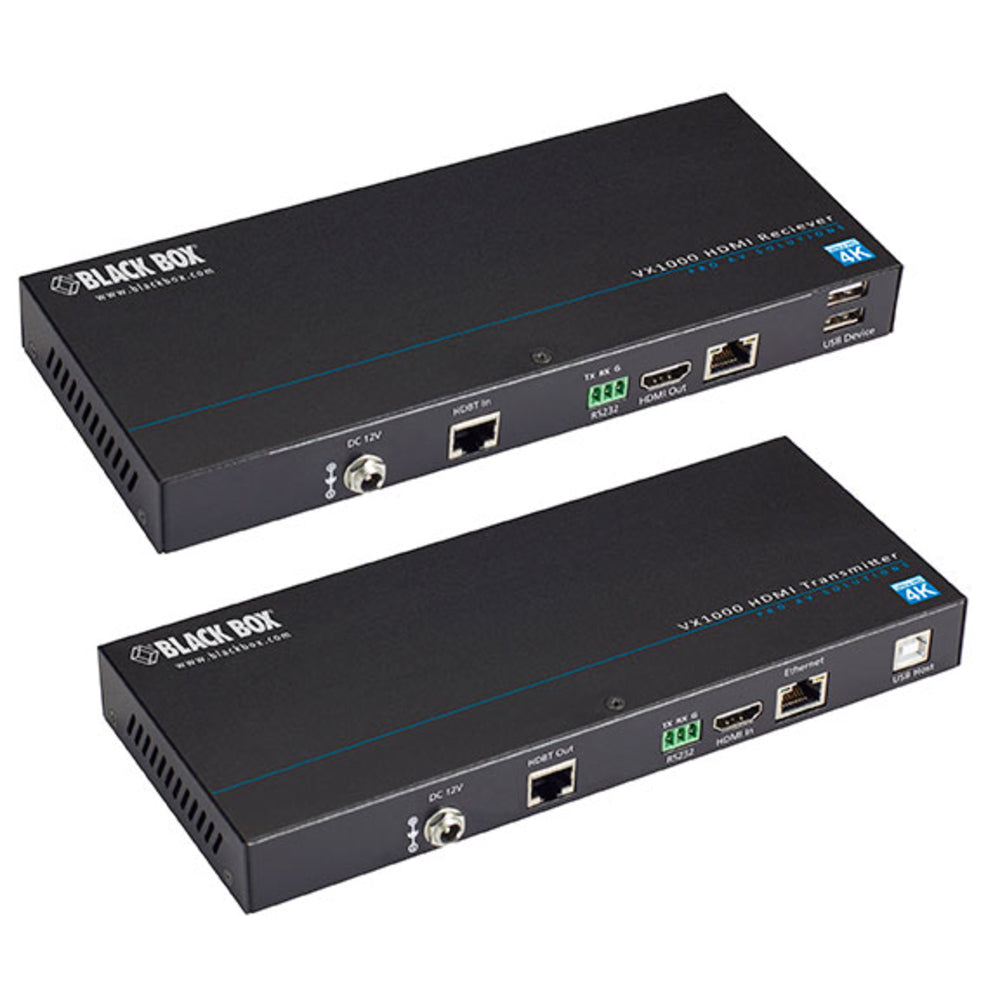

Black Box VX-1001-KIT HDMI Extender - High Definition Signal Booster

The Black Box VX-1001-KIT HDMI Extender is a high-quality AV transmitter and receiver designed to boost and extend the range of your high-definition audio and video signals. With its advanced features and reliable performance, this extender ensures a seamless and immersive audiovisual experience.

Product Features:

• Type: AV transmitter & receiver
• Maximum resolution: 3840 x 2160
• Connectivity technology: Wired
• HDBaseT port: Yes
• Product color: Black
• RJ-45 input ports: 1
• RJ-45 output ports: 1
• DC-in jack: Yes
• Operating voltage: 12V
• HDMI in: 1
• Number of HDMI outputs: 1
• USB connector type: USB Type-A, USB Type-B
• USB ports quantity: 3
• Audio formats supported: LPCM
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): 0&degC - 45&degC
• Storage temperature (T-T): -20&degC - 70&degC
• Certification: CE, FCC
• RoHS compliance: Yes
• Dimensions (WxDxH): 220mm x 93.2mm x 25mm
• Weight: 500g
• Electrostatic Discharge (ESD) protection: 8kV
• Power consumption (typical): 18W
• Input current: 1.5A
• Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
• Maximum refresh rate: 60Hz
• Bandwidth: 297MHz
• HDMI version: 1.4
• HDCP: Yes
• HDCP & EDID bypass: Yes

Product Description:

The Black Box VX-1001-KIT HDMI Extender is the perfect solution for extending your high-definition audio and video signals. It is equipped with a true 48V Power-over-HDBaseT (PoH) technology, which allows it to be powered using a single power supply. This eliminates the need for additional power sources, simplifying installation and reducing cable clutter.

With USB support for keyboard and mouse, the VX-1001-KIT enables seamless control and interaction with your connected devices. The extender also features automatic HDMI EDID management, ensuring optimal video performance and compatibility with various display devices.

Compliant with HDCP 2.2 standards, this extender guarantees secure transmission of protected content. It also offers RS-232 and Ethernet passthrough, allowing integration with control systems and network connectivity.

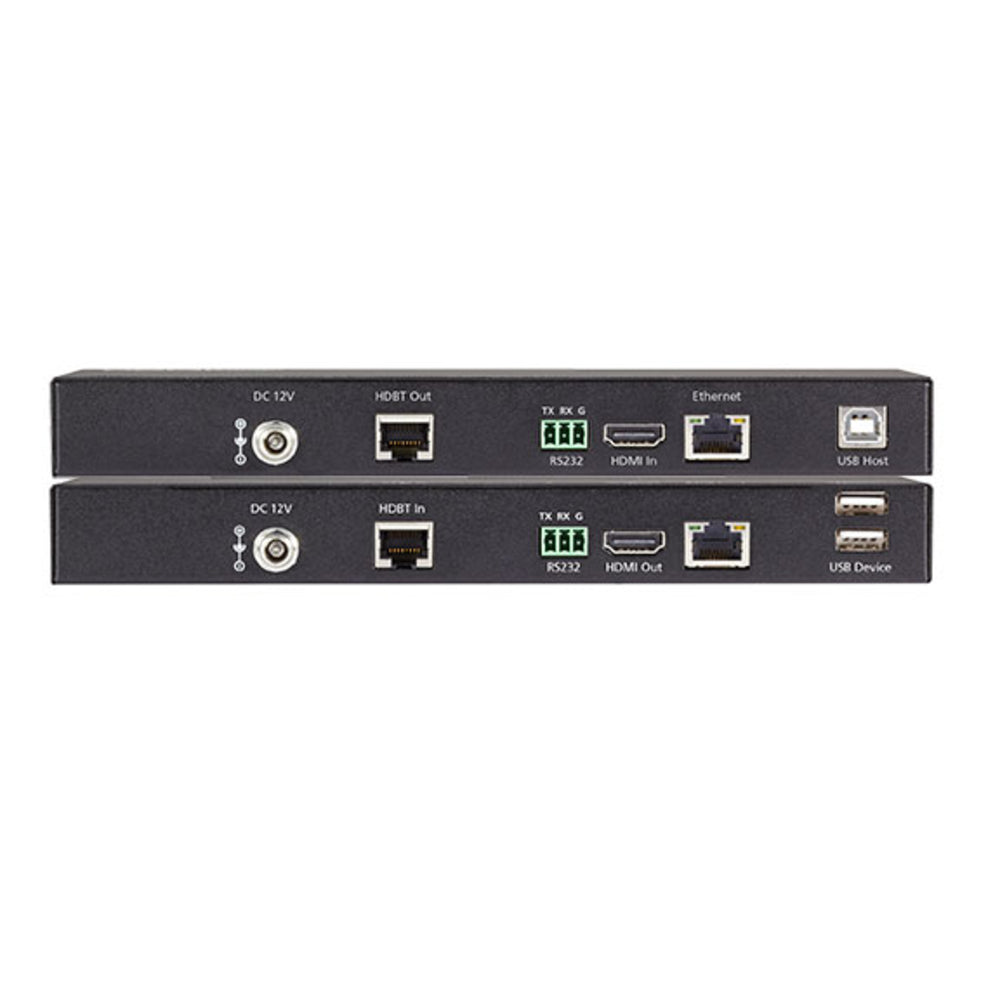

The VX-1001-KIT is designed for convenience with all connections located on the same side of the device, facilitating easy installation and cable management. It is compatible with 4 x 1 and 8 x 2 Presentation Switchers (AVSC-0401H, AVSC-0802H), expanding its versatility and compatibility with existing setups.

Learn More:

For more information about HDMI technology, AV extenders, and high-definition audio and video signals, you can visit the following Wikipedia pages:

• HDMI
• AV Extenders
• High-Definition Signals

Specifications

Product: Black Box Corporation VX-1001-KIT Hdmi Extender Kit

Brand: Black Box Corporation

Model: VX-1001-KIT

Additional Shipping Information:

Shipping Weight: 8.31 lb

Shipping Height: 5.60 in

Shipping Width: 14.40 in

Shipping Length: 17.10 in
