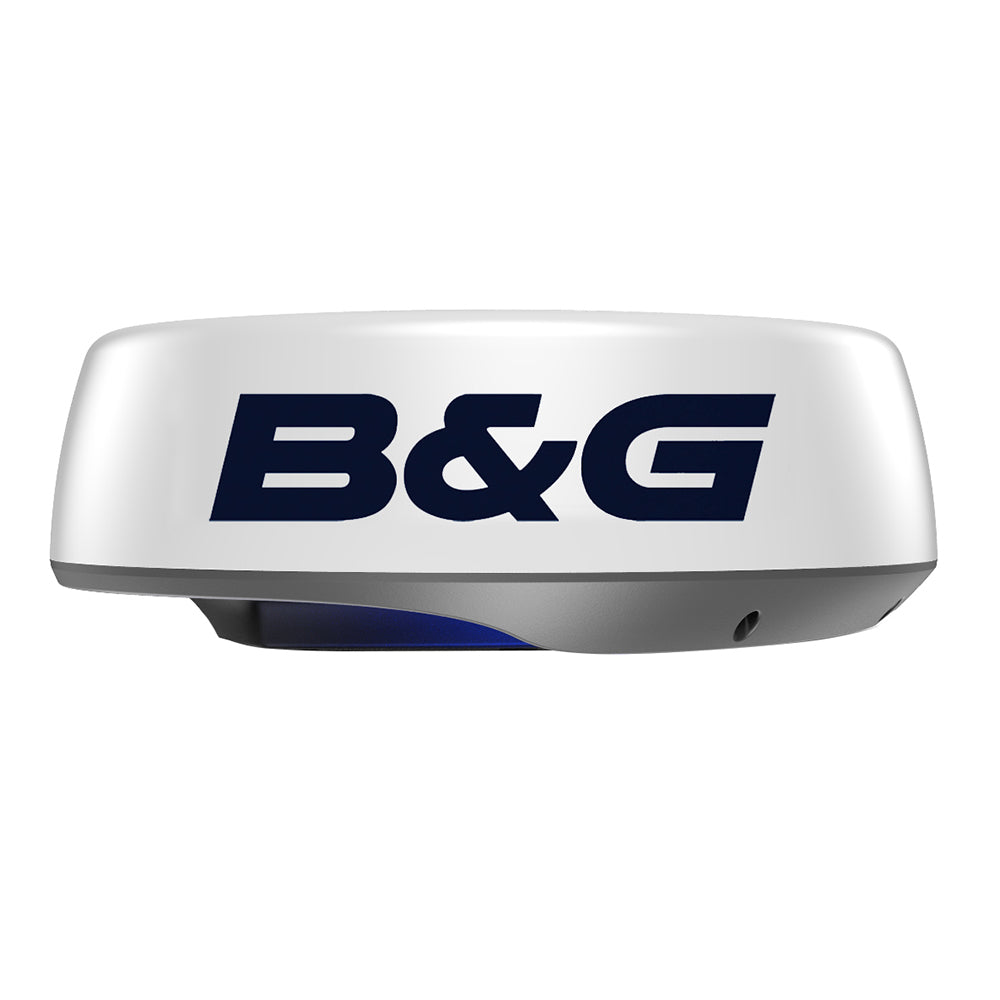

B&G 000-14538-001 Halo24 Radar Dome with Doppler Technology - 20M Cable

The B&G 000-14538-001 Halo24 Radar Dome with Doppler Technology is a powerful radar system that offers an almost real-time view, making it ideal for collision avoidance. With industry-first 60 RPM operation at close range, this radar provides a clear and current picture of your surroundings, ensuring your safety on the water.

Featuring VelocityTrack Doppler technology, this radar allows you to identify hazards in an instant. It provides instant visual feedback on whether targets are coming towards you or moving away, improving your situational awareness and reducing the risk of collision.

The Halo24 radar comes in a compact 24-inch dome antenna, making it perfect for a wide range of sailboats, fishing boats, and smaller powerboats. Despite its compact size, it delivers high-quality short, mid, and long-range detection, allowing you to monitor two distance ranges at once in Dual Range mode.

With a range of up to 48 nautical miles, this radar ensures that you have a clear view of both near and far objects. Its pulse-compression technology and beam sharpening provide enhanced separation between small or distant targets, eliminating any compromises in detection.

The B&G 000-14538-001 Halo24 Radar Dome is easy to operate with its various modes, including harbor, offshore, weather, and bird modes. It also offers MARPA target tracking, allowing you to track up to 10 targets, or 20 in dual range.

Designed for convenience and reliability, this radar is ready instantly from standby and features a lightweight, low-profile dome design with integrated LED lights. It comes with a 20-meter radar cable for easy installation.

Key Features:

• 48 nm range from a compact 24" dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 2nm
• VelocityTrack Doppler technology for collision avoidance
• Easy operation with harbor, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Ready instantly from standby
• Lightweight, low-profile dome design, with integrated LED lights
• 20m Radar Cable

Specifications:

Environmental

• Operating Temperature: -25&degC to +55&degC (-13&degF to +130&degF)
• Relative humidity: +35&degC (95&degF), 95% RH
• Waterproof: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)
• Compliance: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002

Power & Dimensions

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Reverse polarity protection: Yes
• Minimum startup voltage: 10.75 V DC
• Transmitter source (pre-heating time): No magnetron - Instant On

Physical

• Outside dimensions: Diameter 610 mm (24"), Height 225 mm (8.9")
• Scanner weight (no cable): 6.75kg (14.9 lbs)

Radar and Antenna Parameters

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings (nm/sm/km)
• Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
• Transmitter frequency: X-band - 9.4 to 9.5 Ghz

Learn More

• Radar on Wikipedia
• Doppler Effect on Wikipedia

Specifications

Product: B&G 000-14538-001 Halo24 Radar Dome Doppler Technology 20M Cable

Brand: B&G

Model: 000-14538-001
