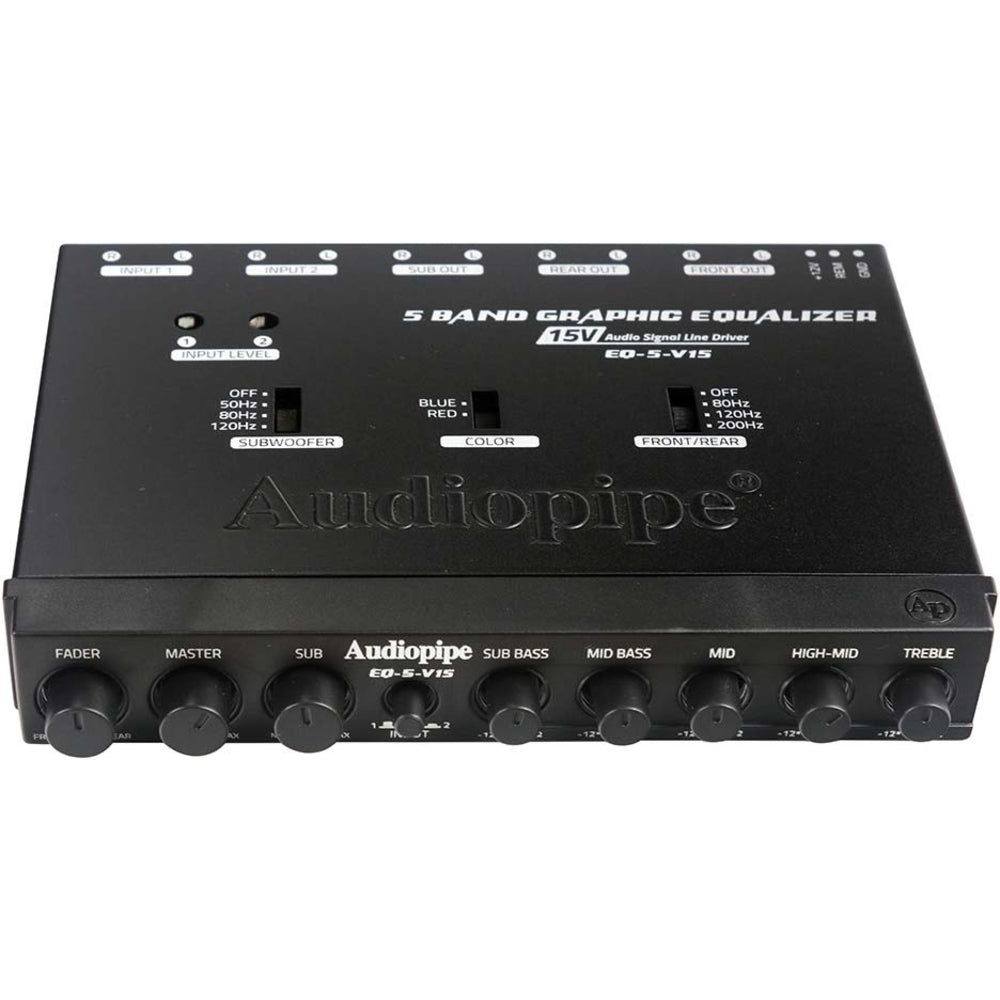

Audiopipe EQ5V15: 5-Band Graphic Equalizer

The Audiopipe EQ5V15 is a high-quality 5-band graphic equalizer with subwoofer control. It is designed to enhance the audio experience in your car by allowing you to fine-tune the sound according to your preferences. With its versatile features and easy installation, this equalizer is a must-have for any car audio enthusiast.

Product Features:

• 5 Band Graphic Equalizer W/ Subwoofer Control
• Output channels (left and right): Front/Rear/Subwoofer
• Input channels (left and right): Input 1/Input 2
• Input range of gain control (dB): >40
• Maximum input voltage (V): >10
• Input impedance (K Ohms): >20
• Maximum output voltage (V): >15
• Volume gain (dB): >40
• -3dB low pass frequency (Hz): 50/80/120
• -3dB high pass frequency (Hz): 80/120/200
• Low pass/High pass slope/oct (dB): 12
• Equalization frequencies: 45/150/500/2.2k/12k
• Equalization cut or boost (dB): 12
• Distortion at 1kHz - 1V (%): 0.01
• Channel separation at 1kHz (dB): >80
• Signal to noise ratio (dB): >100
• Frequency response (Hz) (-1dB): 10-50k
• Universal Half-din Chassis for Ease of Installation
• Subwoofer Output And Level Controls
• Gold-Plated RCA Input Connectors
• Three Stereo RCA Outputs
• Change the backlight illumination to Cool Blue or Hot Red

Learn More:

For more information about graphic equalizers, you can visit the Graphic Equalizer Wikipedia page.

To learn about Audiopipe as a brand, please visit the Audiopipe Wikipedia page.

Specifications

Product: Audiopipemap Eq5V15 Audiopipe 5 Band Graphic Eq

Brand: Audiopipe

Model: EQ5V15
