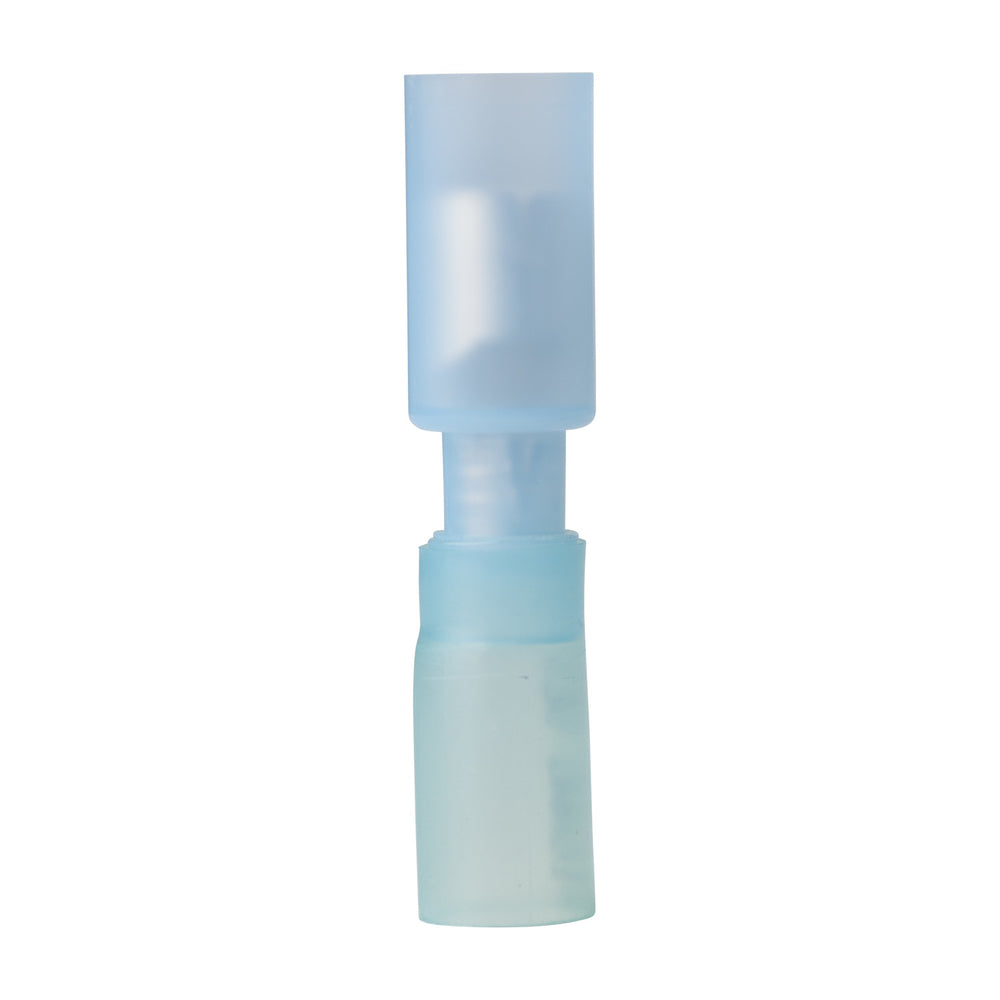

Ancor 319899 Blue Heatshrink Female Snap Plugs 16-14 AWG - 100 Pack

The Ancor 319899 Blue Heatshrink Female Snap Plugs are essential electrical connectors for various applications. This 100-pack of female snap plugs is designed to provide a secure and reliable connection for wires with a gauge size of 16-14 AWG. With their exceptional features and high-quality construction, these heatshrink snap plugs ensure optimal performance and durability.

Features:

• Cross Linked polyolefin tubing: The tubing is made from a durable material that is much stronger than PVC tubing. It offers superior resistance to burning, ensuring safety during operation.
• Heat activated adhesive lining: The adhesive lining is activated by heat and forms an impervious seal, providing excellent protection against salt water, oil, acids, and sunlight. Additionally, it offers strain relief to prevent wire damage.
• Nylon insulator: The snap plugs feature a nylon insulator, which is the preferred choice for experts due to its exceptional resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
• UL Listed and CSA Recognized: These snap plugs meet the industry standards for safety and quality, ensuring reliable performance.
• Highest shrink ratio: The heatshrink tubing has the highest shrink ratio, shrinking to 1/3 of its original size. This ensures a tight and secure fit around the wires.
• Shrinks at 257 deg. F/125 deg. C: The heatshrink tubing shrinks at a moderate temperature, making it easy to apply and providing a consistent seal.
• Operating temperature range: The snap plugs can withstand temperatures ranging from 40 deg. C to 110 deg. C, making them suitable for a wide range of environments.
• Heat activated adhesive: The ANCOR heat shrink connectors have heat activated adhesive built into the sleeve of the heat shrink tubing. This adhesive creates a watertight seal and offers exceptional vibration and strain relief.
• Tinned for corrosion resistance: The snap plugs are tinned to provide corrosion resistance, ensuring a long-lasting and reliable connection.
• Pure copper for maximum current flow: Made from pure copper, these snap plugs offer maximum current flow, minimizing resistance and voltage drop.
• Brazed seam for maximum strength: The snap plugs feature a brazed seam construction, providing maximum strength and durability.
• Wire Range: 16-14/.197
• Size: 3-5mm/5mm
• Gender: Female
• Qty/Pkg: 100

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to Wikipedia.

Learn More

• Cross Linked Polyethylene
• Nylon
• UL Listed
• CSA Recognized
• Corrosion Resistance

Specifications

Product: Ancor 319899 16-14 Female Snap Plug Heatshrink Blue 100 Pack

Brand: Ancor

Model:

Additional Shipping Information:

Shipping Weight: 0.80 lb

Shipping Height: 1.00 in

Shipping Width: 3.00 in

Shipping Length: 8.00 in
