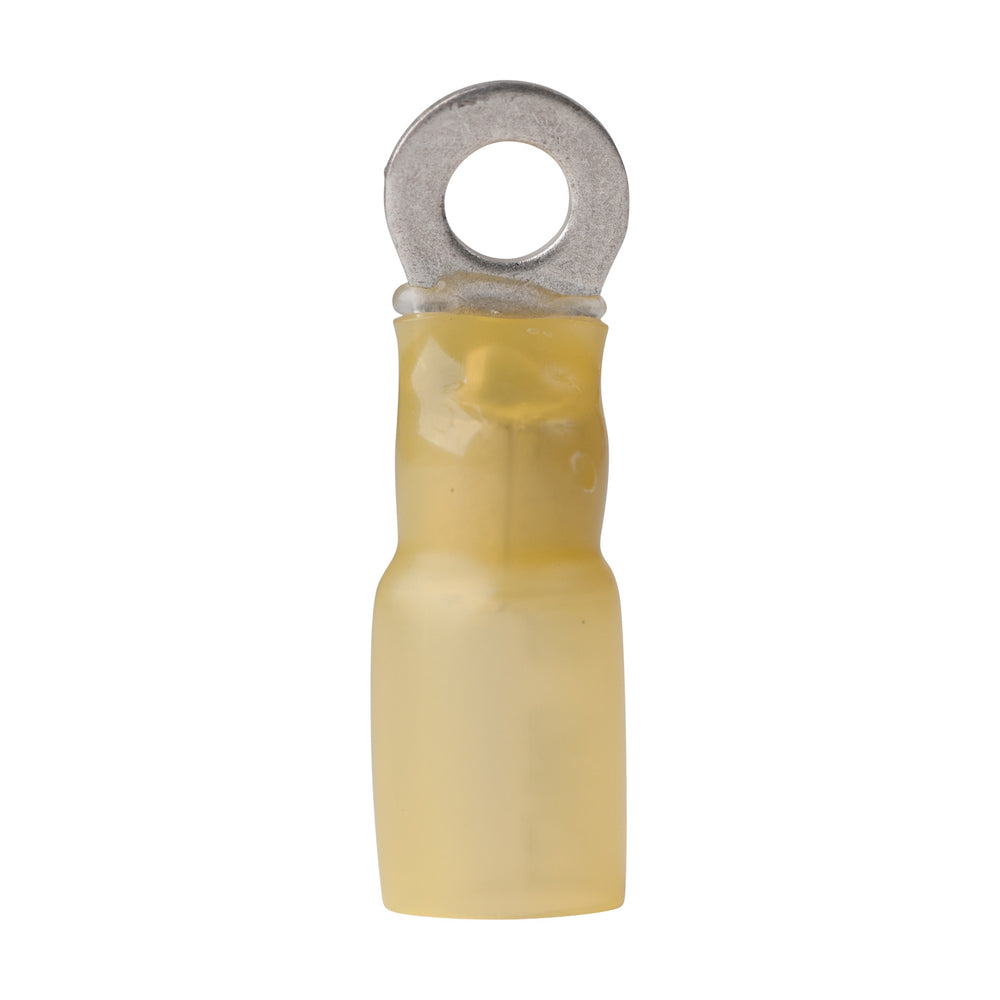

Ancor 312225 8 Ring Terminal Heat Shrink, Yellow (12-10 AWG) - 25 Pack

The Ancor 312225 8 Ring Terminal Heat Shrink is a reliable and durable solution for your electrical connections. This 25-pack of yellow heat shrink ring terminals is designed for 12-10 gauge wire and features a #8 screw size. The product is UL Listed and CSA Recognized, and it offers the highest shrink ratio, shrinking to 1/3 of its original size. With a cross-linked polyolefin tubing and heat-activated adhesive lining, this product provides an impervious seal to salt water, oil, acids, and sunlight as well as strain relief. The nylon insulator is preferred by experts for its marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage. The connectors are tinned for corrosion resistance, pure copper for maximum current flow, and have a brazed seam for maximum strength.

Product Features:

• 12-10 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack
• Cross-linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
• Heat-activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
• UL Listed and CSA Recognized
• Highest shrink ratio - shrinks to 1/3 original size
• Shrinks at 257 deg. F/125 deg. C
• Operating temperature range 40 deg. C to 110 deg. C
• ANCOR heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing
• Shrinks to form a water-tight seal and the ultimate vibration and strain relief
• Tinned for corrosion resistance
• Pure copper for maximum current flow
• Brazed seam for maximum strength
• Wire Range: 12-10
• mm: 3-5

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More

• Ring terminal - Wikipedia
• Heat-shrink tubing - Wikipedia

Specifications

Product: Ancor 312225 12-10 8 Ring Terminal Heat Shrink Yellow 25 Pack

Brand: Ancor

Model:

Additional Shipping Information:

Shipping Weight: 0.20 lb

Shipping Height: 1.00 in

Shipping Width: 4.00 in

Shipping Length: 4.00 in
