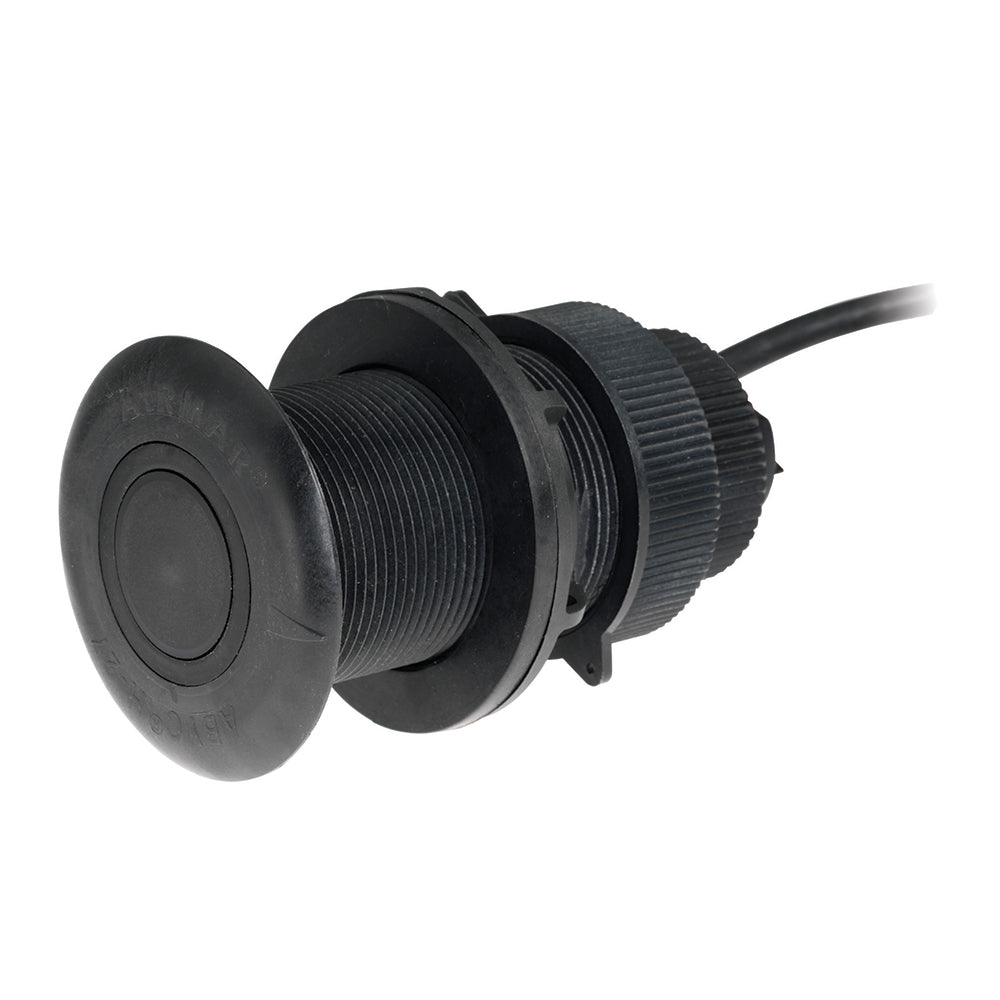

Airmar DT812PV 235kHz Thru Hull 12&deg Tilt Plastic Smart Sensor N2

Airmar DT812PV-235-N2 is a low-profile, retractable, thru-hull smart sensor designed for power and sailboat applications. This plastic smart sensor combines Airmar's proven Tilted ElementT and broadband technologies to provide accurate depth and temperature data. It operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board without any interference. The DT812PV-235-N2 is sold with a 6M cable and is compatible with NMEA 2000 displays.

Product Features:

• Broadband ceramic available with 0&deg, 12&deg, and 20&deg tilt options
• Enhanced depth performance
• Maximum Depth Range: 180M (594')
• Minimum range: 0.5M (1.6')
• Urethane face provides better sensitivity
• Excellent high-speed performance
• Fixed 12&deg tilt for 8&deg to 15&deg deadrise
• NMEA 2000 output
• 100 W RMS power
• Frequency: 235 kHz
• Cone: 12&deg
• All models have depth and temperature
• 235 kHz eliminates interference with fishfinders
• Retractable insert provides ease of serviceability
• Usable Shaft Length: 57mm (2.25")
• 6M (19.8") NMEA 2000 devicenet cable and connector
• 51mm (2") housing
• Blanking plug included
• Accommodates maximum hull thicknesses: 54 mm (2 1/8")
• Accommodates minimum hull thicknesses: 6.3 mm (0.25")

Specifications:

• Product Title: Airmar DT812PV 235kHz Thru Hull 12&deg Tilt Plastic Smart Sensor N2
• Frequency: 235 kHz
• Tilt: 12&deg
• Output: NMEA 2000
• Cable Length: 6M
• Depth Range: Up to 180M (594')
• Minimum Range: 0.5M (1.6')
• Power: 100 W RMS
• Shaft Length: 57mm (2.25")
• Housing Size: 51mm (2")
• Compatible Hull Thickness: 6.3 mm (0.25") to 54 mm (2 1/8")

Learn More:

For more information about Thru Hull Smart Sensors, please visit the Thru-hull Transducer Wikipedia page.

For more information about NMEA 2000, please visit the NMEA 2000 Wikipedia page.

Specifications

Product: Airmar Dt812Pv-235-N2 235Khz Plastic Thru Hull Smart Sensor 12° Tilt

Brand: Airmar

Model: DT812PV-235-N2
