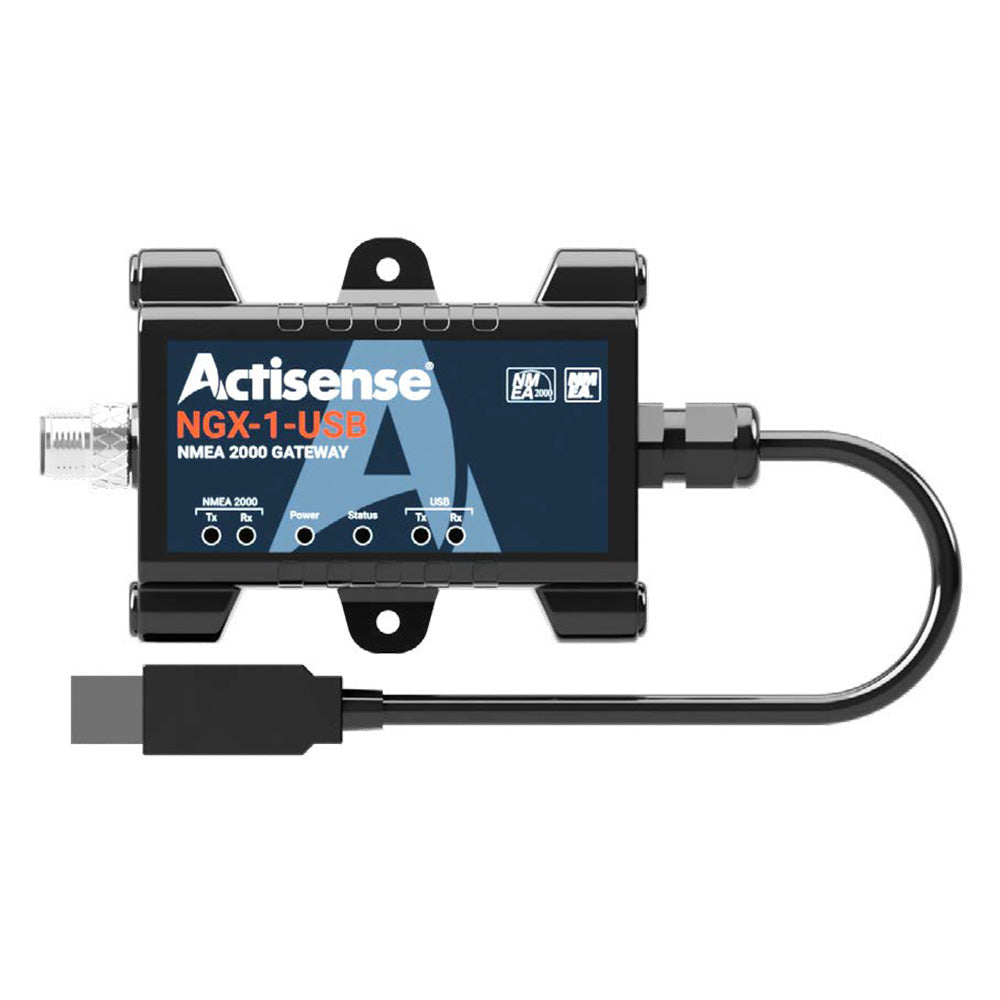

Actisense Ngx-1-USB NMEA 0183 to N2K Gateway

0183 to N2K Gateway with PC Interface, USB

The Actisense NGX-1-USB is an intelligent gateway that converts NMEA 0183 data to NMEA 2000 (and vice versa), allowing seamless sharing of information between devices from the two standards. This allows for the possibility of upgrading some of the vessel's electronics to NMEA 2000 while keeping the remaining NMEA 0183 devices, reducing the initial upgrade cost and spreading the transition to NMEA 2000.

The ISO variant of the NGX-1 connects easily to NMEA 0183 devices with a dedicated pair of data wires for transmit and receive, allowing bi-directional data sharing if required. The device includes OPTOIsolation on the input and groundbreaking ISO-DriveTM technology on the output to keep devices safe from hazardous ground loops.

The USB Variant allows for quick and easy connectivity to a PC running software that requires NMEA 0183 data.

The Actisense NGX-1 is low power and powered directly from the NMEA 2000 network, eliminating the need for an independent power supply. It also enables safe transmission of NMEA 2000 data between a PC and an NMEA 2000 network, allowing for feature-rich software applications to replace or complement dedicated hardware.

Acting as an NMEA 2000 to PC Gateway, the device acts as a rule-enforcing firewall between the PC and the network, providing the user with full control over data transfer.

Features:

• Vital NMEA 2000 diagnostic tool.
• USB version is fully isolated to prevent dangerous ground loops.
• Up to 230,400 baud rate data transfer rate.
• Integrated 1.8m USB cable.
• Diagnostic LEDs on both input and output.

Integrate Seamlessly with Raymariner Products

The STNG-A06045 adaptor cable enables users to integrate Raymarine SeaTalkNG products into the standard configured NMEA 2000r bus and vice-versa. Currently only available when purchased with an Actisense NMEA 2000r Gateway product.

Learn More

NMEA 0183 Wikipedia

NMEA 2000 Wikipedia

Specifications

Product: Actisense Ngx-1-USB NMEA 0183 to N2K Gateway

Brand: Actisense

Model: NGX-1-USB

Additional Shipping Information:

Shipping Weight: 0.50 lb

Shipping Height: 2.00 in

Shipping Width: 6.00 in

Shipping Length: 6.00 in
